The PosiTector 6000 FXS1 includes a Standard body and a removable FXS Xtreme probe for measuring non-magnetic coatings on steel substrates. Our most rugged regular probe.
The DeFelsko 6000 Coating Thickness Gauge standard body features a high contrast color LCD display, 250 in one group memory reading storage capacity and USB data output.
Feature Comparison Chart
|Feature Comparison Chart||Standard(1)||Advanced(3)|
|Order Code (PosiTector Standard gage body and FNDS probe)||FXS1||FXS3|
| || || |
|All features shown on Overview page|
|PosiTector body accepts all PosiTector 6000, 200, DPM, RTR, SPG and UTG,probes easily converting from a coating thickness gage to a dew point meter, surface profile gage or wall thickness gage|
|High contrast, reversible color LCD|
|FAST mode - faster measurement speed for quick inspection|
|SCAN mode - take continuous readings without lifting the probe|| |
|Hi-Lo alarm - audibly and visibly alerts when measurements exceed your specified limits|
|Statistics - Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring|
|Real time graphing and batch notes|| |
|Two (2) Year Warranty on Body and Probe|
| || || |
|Memory Features & Capacity||Standard||Advanced|
|Reading Storage Capacity||250 in one group||100,000 in up to1000 groups|
|Screen Capture - record screen images for record keeping and review|
|Batch Annotation - Create meaningful batch names and enter notes directly on the instrument using a familiar on-screen QWERTY keyboard.|| |
|SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels|| |
|PSPC 90/10 feature determines determines if a coating system complies with an IMO performance standard for protective coatings|| |
|Multiple stored cal adjustments for measuring on a variety of substrate conditions|| |
| || || |
|USB port for fast, simple connection to a PC and to supply continuous power. USB cable included|
| Wireless Technology for data transfer to a PC or optional portable printer|| |
|WiFi technology wirelessly communicates with PosiSoft.net, downloads software updates and provides access to the gages stored measurement data using a standard web browser.|| |
| || || |
|PosiSoft Solutions - 4 ways to view and report your data||Standard||Advanced|
Powerful desktop software (PC/Mac) for downloading, viewing, printing and storing measurement data. No internet connection required.
|PosiSoft USB Drive|
Simple gage interface to retrieve data in a manner similar to USB flash drives, cameras or digital audio players. No software to install or internet connection required.
Web-based application offering secure centralized management of PosiTector and PosiTest AT-A readings. Synchronize measurement data from your instrument and access it from anywhere in the world.
Mobile app connects PosiTector Advanced instruments to your iOS or Android smart device.
|FXS Probe (included)|
|Range||0 - 1500 um |
0 - 60 mils
|Accuracy*||+ (0.05 mils + 1%) 0 - 2 mils|
+ (0.1 mils + 1%) > 2 mils
|+ (1 um + 1%) 0 - 50 um|
+ (2 um + 1%) > 50 um
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.

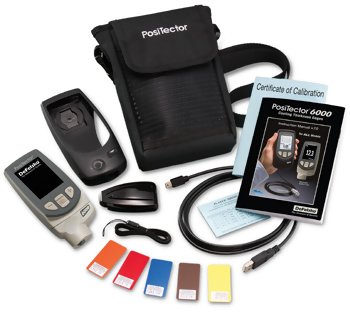

Comes complete with Standard gage body, FXS probe, precision plastic shims, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST or PTB, USB cable, two (2) year warranty.
SIZE: 137 x 61 x 28 mm (5.4" x 2.4" x 1.1")
BODY WEIGHT: 140 g (4.9 oz.) without batteries
CONFORMS TO: ISO 2178/2360/2808, PrEN ISO 19840, ASTM B499/D1186/D1400/D7091/E376/G12, BS3900-C5, SSPC-PA2 and others
