STDCSS Certified shim set, 8 shims 25 um (1 mil) to 1500 um (60 mil)



Price: $ 195.00

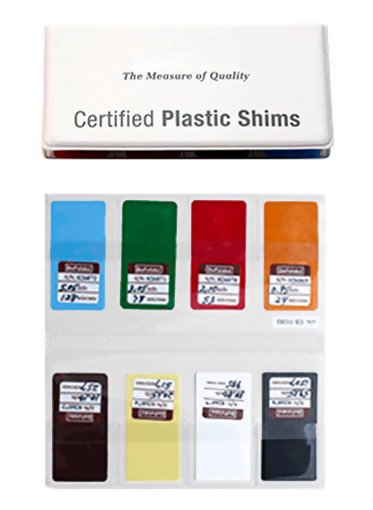

STDCSS NIST Certified Plastic Shim Set, Includes 8 Size Shims
NIST Certified Plastic Shim Set
Set includes four (8) certified shims

Our STDCSS is a set of 8 plastic shims that simulate a coating over a particular substrate material or shape. The shims allow users to check coating thickness gauge performance and help with calibration adjustment.

The shims can also be used to protect the probe from damage or premature wear when placed over hot or abrasive surfaces. They can also be placed on top of soft or tacky coatings to obtain thickness measurements without the probe having to make direct contact with coating material.

line
Shim Thickness
line

Approximate ThicknessColor
25 m (1 mil)Orange
50 m (2 mil)Red
75 m (3 mil)Green
125 m (5 mil)Blue
250 m (10 mil)Brown
500 m (20 mil)Yellow
1000 m (40 mil)White
1500 m (60 mil)Black

Accuracy: 2 m (0.08 mil)

line
Features
line

  • Certified shims provide an economical alternative to Coated Metal Plates but have a reduced accuracy
  • Certified and labeled in both Metric and Imperial units
  • Supplied in protective pouch
