ElektroPhysik 80-143-0000 MiniTest 2500 Coating Thickness Gauge - Probes Sold Separately



Price: $ 1,275.00

ElektroPhysik MiniTest 2500 & 4500 Coating Thickness Gauges
MiniTest 2500 - Basic Model with memory and USB output
MiniTest 4500 - Adds Batch Memory, Bluetooth
Probe Sold Separately

Two Models

  • MiniTest 2500 - Basic Model with memory and USB output
  • MiniTest 4500 - Adds Batch Memory, Bluetooth, RS232 and more

The ElektroPhysik MiniTest 2500 and 4500 Coating Thickness Gauges are high precision coating thickness gauges compatible with a large range of probes for measuring coatings on ferrous and non-ferrous metals. Different calibration methods and evaluation options for a wide range of tasks in the field of coating measurements.

MiniTest coating thickness gauges are not only useful in the laboratory but are equally qualified for use in industrial applications thanks to their rugged housing with a IP 65 rating. Both models feature USB output for connection to notebooks and PCs. The ElektroPhysik MiniTest4500 Coating Thickness Gauges additionally offers a Bluetooth output for wireless data transfer to mobile devices like Smartphones and printers directly on site. All gauge functions can be triggered directly pressing a single key of the illuminated keypad. The large display with background illumination adds to a high level of user comfort and ergonomics. A broad selection of measuring sensors is available for the MiniTest 2500/4500 line of coating thickness gauges allowing it to handle standard applications as well more complex measuring tasks.

The scope of application is determined by the sensor connected to the gauge:

F-type (ferrous) sensors work according to the magnetic induction principle and can measure non-magnetic coatings such as paint, enamel, rubber, aluminum, chrome, copper, zinc etc applied on iron and steel (including steel alloys and hardened magnetic steels).

N-type (non-ferrous) sensors work according to the eddy current principle and measure insulating coatings such as paint, anodizing, ceramics etc. applied on all non-ferrous metals (for example aluminum, copper, zinc die cast, brass etc.) including austenitic steels.

FN-type (combination ferrous / non-ferrous) sensors combine both principles and identify the substrate underneath the coating thus automatically switching to the correct measuring principle to measure on base material steel or non-ferrous metal.


line

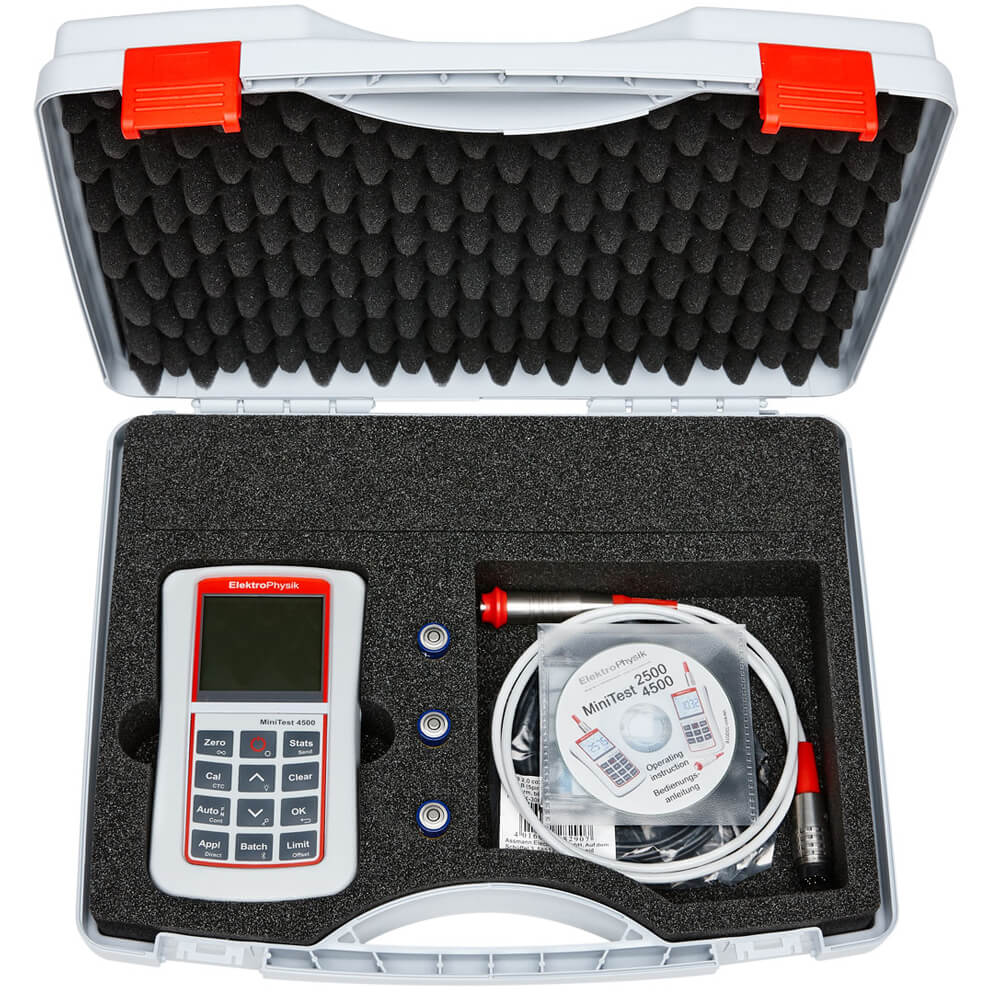

Kit Contents
line

  • ElektroPhysik MiniTest 2500 or 4500 Coating Thickness Gauges
  • Rubber protection case
  • x AA battery
  • USB connection cable
  • Instruction Manual
  • Caring Case
  • Probe Sold Separately


line
Features
line

  • All functions directly accessible
  • Large selection of interchangeable sensors
  • High-contrast display and illuminated keypad
  • Memory and Statistics
  • Bluetooth and USB Output
  • IP 65 Rated Rugged housing


line
Specifications
line

Memory MiniTest 25002,000,000 values stored in 1 batch
Memory MiniTest 45002,000,000 values stored in up to 9500 batches
Statistical functions (per batch) MiniTest 2500kvar, n, max., min.
Statistical functions (per batch) MiniTest 4500kvar, n, max., min., CP, CPK
CalibrationFactory settings, zero and up to four calibration points
Measuring unitsm, mm, cm, mils, inch
Output MiniTest 2500USB
Output MiniTest 4500USB and Bluetooth (RS232 optional)
Power3x AA batteries or via USB
Norms and standardsDIN EN ISO 1461, 2064, 2178, 2360, 2808, 3882; ISO 19840; ASTM B 244, B 499, D 7091, E376
Display53 x 46 mm, backlit
Operating temperature-10 - 60 C / 14 - 140 F
Storage temperature-20 - 70 C / -4 - 158 F
Dimensions153 mm x 89 mm x 36 mm (6 x 3.5 x 1.4)
Weight320 g (0.7 lbs) (gauge incl. batteries), 90 g (0.2 lbs) rubber protection case
Protection classIP 65


line
Related Products
line

CPS Certified Plastic Shim Set

  • Foils for Coating Thickness Gauge Calibration and Verifications


line
Downloads
line

ElektroPhysik MiniTest 2500 & 4500 Coating Thickness Gauges - Data Sheet
ElektroPhysik MiniTest 2500 & 4500 Coating Thickness Gauges - Instruction Manual


Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
ElektroPhysik 80-143-0000 MiniTest 2500 Coating Thickness Gauge - Probes Sold Separately $1,275.00
Accessories Price
NISTCAL NIST Traceable Calibration Certificate (Per Probe Ordered) $100.00
ElektroPhysik 80-0A0-1202 Ferrous Probe F05 Probe for use on Ferrous Substrates (0-500 um / 20 mils) $830.00
ElektroPhysik 80-0A1-1603 Ferrous Probe F 1.6 Probe for use on Ferrous Substrates (0-1600 um / 63 mils) $710.00
ElektroPhysik 80-0A1-1202 Ferrous Probe F2 HT Probe for use on High-Temp (250 C / 482 F) Ferrous Substrates (0-2000 um / 80 mils) $970.00
ElektroPhysik 80-0A1-1302 Ferrous Probe F2 EX-HT Probe for use on Extra High-Temp (350 C / 662 F) Ferrous Substrates (0-2000 um / 80 mils) $1,740.00
ElektroPhysik 80-0A1-1403 Ferrous Probe F3 Probe for use on Ferrous Substrates (0-3000 um / 120 mils) $710.00
ElektroPhysik 80-0A4-1200 Ferrous Probe F 1.6/90 90 Degree Probe for use on Ferrous Substrates (0-1600 um / 63 mils) $930.00
ElektroPhysik 80-0A4-1300 Ferrous Probe F 2/90 90 Degree Probe for use on Ferrous Substrates (0-2000 um / 80 mils) $930.00
ElektroPhysik 80-0A6-1001 Ferrous Probe F 10 Probe for use on Ferrous Substrates (0-10 mm / 394 mils) $1,015.00
ElektroPhysik 80-0A8-1001 Ferrous Probe F 20 Probe for use on Ferrous Substrates (0-20 mm / 788 mils) $1,015.00
ElektroPhysik 80-0A2-1001 Non-Ferrous Probe N 02 Probe for use on Non-Ferrous Substrates (0-200 um / 8 mils) $910.00
ElektroPhysik 80-0A3-1302 Non-Ferrous Probe N 1.6 Probe for use on Non-Ferrous Substrates (0-1600 um / 63 mils) $870.00
ElektroPhysik 80-0A5-1200 Non-Ferrous Probe N 1.6/90 90 Degree Probe for use on Non-Ferrous Substrates (0-1600 um / 63 mils) $1,005.00
ElektroPhysik 80-0A5-1300 Non-Ferrous Probe N 2/90 90 Degree Probe for use on Non-Ferrous Substrates (0-2000 um / 80 mils) $1,005.00
ElektroPhysik 80-0A7-1000 Non-Ferrous Probe N 10 Probe for use on Non-Ferrous Substrates (0-10 mm / 394 mils) $1,335.00
ElektroPhysik 80-0A9-1000 Non-Ferrous Probe N 20 Probe for use on Non-Ferrous Substrates (0-20 mm / 788 mils) $1,335.00
ElektroPhysik 80-0B1-1000 Non-Ferrous Probe N 100 Probe for use on Non-Ferrous Substrates (0-100 mm / 4 in) $1,765.00
ElektroPhysik 80-080-1402 Combination Ferrous and Non-Ferrous Probe FN 1.6 Probe for use on Ferrous and Non-Ferrous Substrates (0-1600 um / 64 mils) $1,285.00
ElektroPhysik 80-082-1000 Combination Ferrous and Non-Ferrous Probe FN 1.6/90 90 Degree Probe for use on Ferrous and Non-Ferrous Substrates (0-1600 um / 63 mils) $1,370.00
ElektroPhysik 80-082-1100 Combination Ferrous and Non-Ferrous Probe FN 2/90 90 Degree Probe for use on Ferrous and Non-Ferrous Substrates (0-2000 um / 80 mils) $1,370.00
ElektroPhysik 80-0A2-1101 Special Probe N.08 Cr Probe for measuring chrome on copper substrates (0-80 um / 3 mils) $910.00
ElektroPhysik 80-0B4-1001 Special Probe CN02 Probe for Copper Coatings on Insulating Substrates, 0-8 mils (0-200 um) $1,750.00
CPS-10 Certified Plastic Shims, Set of 4 $120.00
BATT-RC4AA-WC 4-pack AA Ni-MH Rechargeable Batteries & Charger Kit $35.00
