3000EZ-E Coating Thickness Gauges |
2 Models
DCF-3000EZ-E - Ferrous Only Model
DCFN-3000EZ-E - Combination Ferrous & Non-Ferrous Model Range Ferrous: 0-140 mils (0-3500um)
Non-Ferrous: 0-120 mils (0-3000um) The 3000EZ-E Series Coating Thickness Gauge provides fast, non-destructive, accurate coating measurements on steel and non-ferrous metals. Designed to accommodate a wide range of production line, laboratory and field applications. Manufactured to international quality standards, the 3000EZ-E Series will provide years of trouble-free use. The 3000EZ-E Series Coating Thickness Gauge is designed for testing non-magnetic coatings such as varnish, paint, enamel, chrome, copper, zinc, etc. on steel and iron (magnetic induction method) and all electrically insulating coatings, such as varnish, paint, anodizing coatings on non-ferrous metals, also on stainless steel (eddy-current method). |
 Features of the 3000EZ-E Series Coating Thickness Gauge

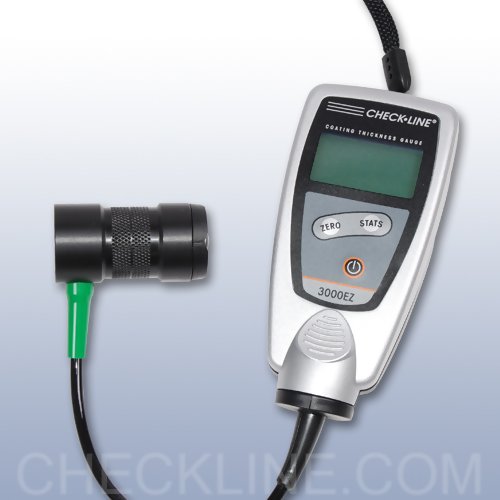

 External dual sensor probe with hard metal pole tip | | Includes NIST Calibration Certificate | | Live statistics display for up to 99 readings |
| | Keypad-selectable English or metric units. | | 1 Year Warranty |
|

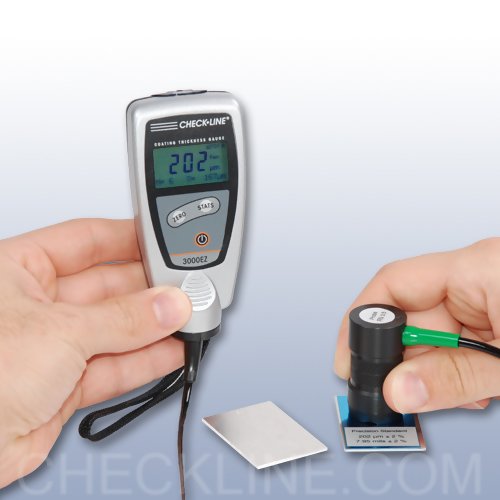

Photo Gallery for the 3000EZ-E Series Coating Thickness Gauge Click any photo to enlarge
Related Products for the 3000EZ-E Series Coating Thickness Gauge
|
NTS
NIST Certified Plastic Shims |  |
| | | _ |
|
TS-5CG
Commercial Grade Shim Set |  |
| |
Complete Kit of the 3000EZ-E Series Coating Thickness Gauge

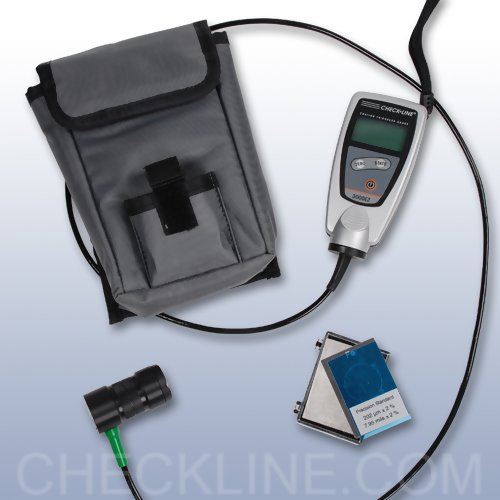

| | | The 3000EZ-E Series Coating Thickness Gauge is supplied as a complete kit with gauge, ferrous & non-ferrous zero plate(Combination model only), plastic test shim, 2 AAA batteries, soft carrying pouch, instruction manual and calibration certificate. |
 |
Measuring Limits of the 3000EZ-E Series Coating Thickness Gauge
 | Minimum Radius for Convex Surfaces | 0.2" (5 mm) | | Minimum Radius for Concave Surfaces | 2" (50mm) |  | Minimum Headroom | 2" (50 mm) |  | Minimum Sample Diameter | 0.4" (10 mm) |  | Minimum Substrate Thickness - F | 20 mils (0.5 mm) | | Minimum Substrate Thickness - NFe | 2 mils (50 m) |
Resolution Table
| Mils | | 0 - 99.9 mils | 0.1 mils | | 100.0 - 140.0 mils | 0.2 mils | | | Microns (m) | | 0 - 999 m | 1 m | | 1.000 - 2.498 mm | 0.002 mm | | 2.500 - 3.500 mm | 0.005 mm |
|
Specifications of the 3000EZ-E Series Coating Thickness Gauge
| Range | Ferrous: 0 - 140.00 mils (0 - 3500 m)
Non-Ferrous: 0 - 120.00 mils (0 - 3000 m) | | Accuracy | 0.1 mils (3m) or 3% of reading, whichever is greater | | Resolution | Refer To Table Above | | Display | back-lit, 4-digit alphanumeric, digit height | | Minimum Measuring Area | 0.5" x 0.5" (13 mm x 13 mm) | | Minimum Curvature Radius | concave: 0.2" (5 mm) | | Minimum Substrate Thickness | Ferrous: 20 mils / 0.5 mm
Non-Ferrous: 2 mils / 50 m | | Calibration | factory calibration, zero calibration | | Statistics Program | Number of readings, mean value, standard deviation, maximum and minimum reading of max. 99 readings | | Operating Temp. | 32 F to 122 F / 0 C to 50 C | | Surface Temp. | 5 F to 140 F / -15 C to 60 C | | Storage Temp. | -4 F to 140 F / -20 C to +60 C | | Power | 2 AAA 1.5V | | Dimensions | 4.3" x 2" x 1" (110 mm x 50 mm x 25 mm) | | Weight | 3.2 oz (90 g) | | Protection Class | IP 52 (proof against dust and dripping water) | | Standards | DIN, ISO, ASTM, BS | | Warranty | 1 Year | | Calibration Certificate | Included |
Downloads for the 3000EZ-E Series Coating Thickness Gauge
