Checkline DCN-3000FX Coating Thickness Gauges Non-Ferrous, 0-60.0 mils / 0-1500 um



Price: $ 995.00

Checkline 3000FX Series Coating Thickness Gauge
Separate Probe
Keypad-selectable units: Mils or Microns
Live Statistics Displays: Number of readings, mean, standard deviation, maximum and minimum reading of up to 10,000 readings

3 Models
DCF-3000FX
- Ferrous Only Model
DCN-3000FX - Non-Ferrous Only Model
DCFN-3000FX - Combination Ferrous & Non-Ferrous Model

The 3000FX Series coating thickness gauge is a multifunctional fully menu driven gauge for fast, professional and precise coating thickness measurement for

varnish, paint and electroplated coatings on iron/steel and

varnish, paint and anodising coatings on non-ferrous metals and on austenitic stainless steels

All external probes are machined to ultra-high standards and utilize a unique, hard-metal probe tip which prevents probe wear.

A v-notched footer provides a stable footing on small cylindrical parts, which can be removed to expose a "micro-probe" sensor perfect to measure on small surfaces and parts.

Where to use the 3000FXcoating thickness gauge Series

Wherever coatings are applied whether on visual and aesthetic grounds, to prevent corrosion protection, or for functional and mechanical reasons the coating thickness represents an essential quality feature. The 3000FX Series is ideal for speedy, non-destructive and exceptionally precise coating thickness measurement.


line

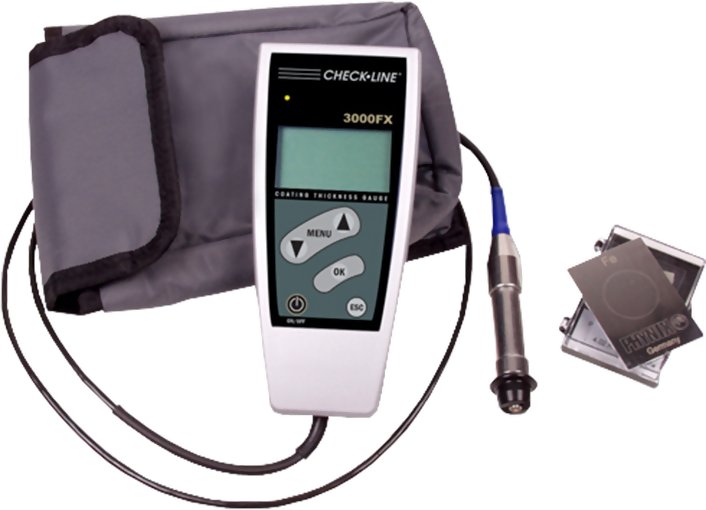

Kit Contents
line

  • 3000FX Series Coating Thickness Gauge
  • Ferrous and or non-ferrous zero plate(model dependent)
  • 2 calibration standards
  • 2 AA batteries
  • Soft carrying pouch
  • Instruction manual
  • Calibration certificate


line
Features
line

  • The 3000FX Series is a compact, lightweight coating thickness gauge for operators who require both innovative and user-friendly measuring techniques
  • The 3000FX Series ensures non-destructive coating thickness measurement on steel and non Ferrous metals
  • Data transfer to a printer or PC takes place via an infra-red interface
  • Up to 10 000 readings can be statistically evaluated: number of readings, mean value, standard deviation, minimum and maximum reading
  • The 3000FX Series identifies the substrate and activates the appropriate measuring procedure
  • Menu in a choice of three languages ensures ease of operation
  • The uniform contact pressure of the sensor is kept to a minimum, preventing scratches and indentations to sensitive surfaces
  • Optional high temperature footer for measuring on surfaces up to 150 C/302 F
  • NIST Certificate Included at no additional cost
  • 1 Year Warranty


line
Specifications
line

Measuring principlemagnetic induction principle (Ferrous)
eddy-current principle (Non-Ferrous)
Range0 - 60.00 mils
0 - 1500 m
Accuracy0.04 mils / 1m + 1% of reading
ResolutionRefer to RESOLUTION TABLE, above
Displayback-light, 4-digit alphanumeric, digit height 10mm
Minimum Measuring Area0.2" x 0.2" (5 mm x 5 mm)
Minimum Curvature Radiusconvex: 0.12" (3 mm), concave: 0.2" (5 mm)
Minimum Substrate ThicknessFerrous: 20 mils / 0.5 mm
Non-Ferrous: 2 mils / 50 m
Calibrationfactory calibration, zero calibration, foil calibration, offset-function: addition or subtraction of a constant value
Memory80 readings
Statistics ProgramNumber of readings, mean value, standard deviation, maximum and minimum reading of max. 10,000 readings
Data OutputInfrared IrDA Standard
Operating Temp.32 F - 122 F / 0 C - 50 C
Surface Temp.5 F - 140 F / -15 C - 60 C (standard)
5 - 302 F / 15 - 150 C (w/optional footer)
Storage Temp.-4 F to 140 F / -20 C to +60 C
Power2 AA 1.5V
Dimensions5.6" x 2.5" x 1.2" (140 mm x 62 mm x 30 mm)
Weight7 oz (200 g) (gauge + probe)
Protection ClassIP 52 (proof against dust and dripping water)
StandardsDIN, ISO, ASTM, BS
Warranty1 Year
Calibration CertificateIncluded


lineMeasuring Limits
line

Minimum Radius for Convex Surfaces0.2" (5 mm)
Minimum Radius for Concave Surfaces2" (50mm)
Minimum Headroom4" (100 mm)
Minimum Sample Diameter0.5" (13 mm)
Minimum Substrate Thickness - F
Minimum Substrate Thickness - NFe
20 mils (0.5 mm)
2 mils (50 m)


line
Resolution Table
line

MilsMicrons (m)
0.00 - 9.99 mils0.01 mils0.0 - 99.9 m0.1 m
10.00 - 24.98 mils0.02 mils100.0 - 249.8 m0.2 m
25.00 - 49.95 mils0.05 mils250.0 - 499.5 m0.5 m
50.0 - 99.9 mils0.1 mils500 - 999 m1 m
1.000 - 1.998 mm0.002 mm


line
Downloads
line

Checkline 3000EZ-E Series Coating Thickness Gauge - Data Sheet
Checkline 3000EZ-E Series Coating Thickness Gauge - Instruction Manual

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
Checkline DCN-3000FX Coating Thickness Gauges Non-Ferrous, 0-60.0 mils / 0-1500 um $995.00
Accessories Price
3000-HTF High Temp Footer (150 deg C/302 deg F) for 3000FX $75.00
3000-PTS Coating Thickness Gauge Probe Stand $740.00
