| Measuring principle: | Magnetic induction method (F-version); Eddy current method (N-version) |
| Measuring range: | 3000PRO & 3000PRO-FN90:
0 - 60.00 mils / 0 - 1500 m
3000PRO-F10:
0 - 400 mils / 0 - 10,000 m |
| Tolerance: | (0.7 m/0.04 mils + 1% of reading) |
| Resolution: | Refer to RESOLUTION TABLE, above |
| Display: | 4-digit display (digit height 10 mm/0.4) and 32 alphanumerical characters; switchable backlight |
| Minimum measurement area: | 5 mm x 5mm/0.2 x 0.2 |
| Minimum curvature radius: | convex 2mm/0.08; concave 5mm/0.2 |
| Minimum substrate thickness: | 0.2mm/8 mils (for F-versions); 50 m/2 mils (for N-versions) |
| Calibration methods: | - Factory calibration: no calibration required for standard applications
- Zeroing (1-point calibration): measurements on small geometries
- Zeroing and foil calibration (2-point calibration): increased measuring accuracy
- Two-foil calibration: especially for rough, sand-blasted surfaces
- CTC: calibration on coated object if zeroing is not possible
- Zero offset: addition/subtraction of a constant value to/from the reading |
| Limit values: | Selectable; optical and acoustic signal if limit value is exceeded |
| Scan mode: | For continuous measurements; for the quick recognition of coating thickness variations;
with permanent display of minimum and maximum reading |
| Statistics: | Single-value statistics: n, avarage x, s, kvar, min, max, cp, cpk from max. 10,000 readings
Block-value statistics: n, avarage x , avarage s, avarage kvar , min, max, cp, cpk; block size 3 to 100 readings |
| Data memory: | 10,000 readings in max. 500 selectable files; alphanumerical file names; stored readings and statistical values individually recallable |
| Interfaces: | Infrared and serial RS232 interface |
| Language: | Operator prompting and documentation in German, English, French (optional other languages) |
| Operating temperature: | 0 C to 50 C/32 F to 122 F (storage temperature - 20 C to +60 C/-4 F to 140 F) |
| Surface temperature: | 5 F - 140 F / -15 C - 60 C (standard)
5 - 302 F / 15 - 150 C (w/optional footer) |
| Power supply: | 2 x round cell (AA) 1.5 V up to 60 hours of operating time |
| Housing/keypad: | Protection class IP52 (protection against dust and dripping water) |
| Dimensions: | Gauge: 140 mm x 62 mm x 30mm/5.6 x 2.5 x 1.2 (HxWxD)
Probe: dia. 14 mm x 83mm/dia. 0.56 x 3.3 |
| Weight: | approx. 200 g/7 oz (gauge including batteries and probe) |
| Standards: | DIN EN ISO, ASTM, BS |
| Warranty | 1 Year |
| Calibration Certificate | Included |

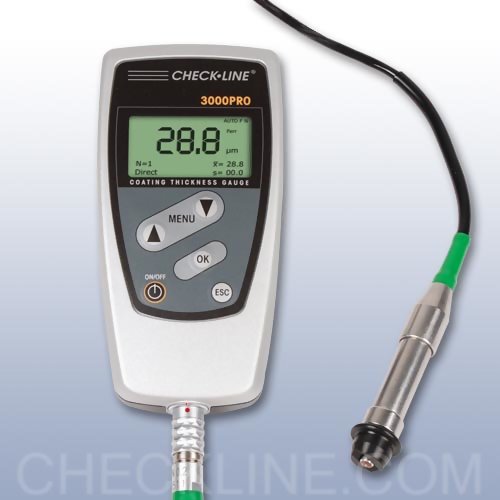

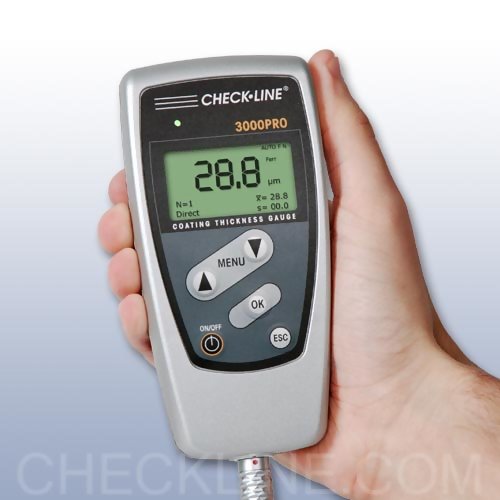

Features of the 3000PRO Coating Thickness Gauge
Automatic identification of the substrate
Probe Specifications
