Positector 200 B/Standard Coating Thickness Gauges 0.5 - 40 mils
Price: $ 1,795.00
The Positector 200 Coating Thickness Gauges measures coating thickness on wood, concrete, plastic, compositeand more.
Measuring Range: 0.5 150 mils (13 3800 m)
The Positector 200is durable, accurate, versatile and simple to use.
Separate Probe
| The Positector 2000 Coating Thickness Gauges non-destructively measures a wide variety of applications using proven ultrasound technology. Positectors 200 measures coating thickness over wood, concrete, plastics, composites and more. Advanced models of the Positector 200 measure up to 3 individual layer thicknesses in a multi-layer system and features a graphic readout for detailed analysis of the coating system. SimpleReady to measure - no adjustment required to measure most coatings Menu-driven user interface One-Handed menu navigation Bi-color indicator light - ideal in a noisy environment RESET feature instantly restores factory settings
DurableSolvent, acid, oil, water and dust resistant - meets or exceeds IP5X ingress protection Scratch/Solvent resistant display suitable for harsh environments Shock-absorbing, protective rubber holster with belt clip Two year warranty on both gage body and probe.
AccurateResponsive transducers provide fast, accurate readings (up to 40 readings/minute) Proven non-destructive ultrasonic technique conforms to ASTM D6132 and ISO 2808 Certificate of Calibration showing traceability to NIST included

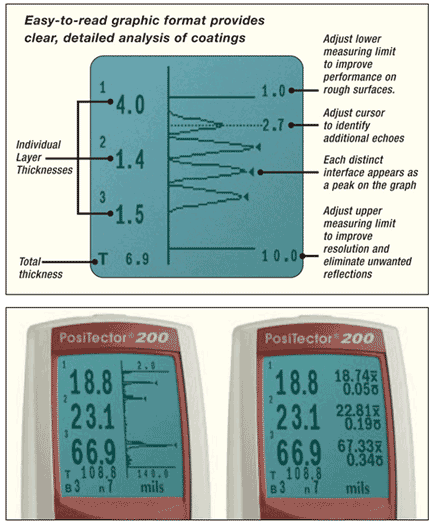

VersatileContinually displays/updates average, standard deviation, and number of readings while measuring Internal memory stores up to 10,000 readings in up to 1000 batches Built-in clock to date and time stamp each stored measurement USB, IR and serial output options for simple communication with printers and PCs Backlit display for dim or dark environments Mils/Microns switchable Selectable display languages including: English, Spanish, French, German, Portuguese, Chinese, Japanese, Norwegian, Russian, Czech and Italian - Screen Captures |
 Features of the PosiTector 200 Coating Thickness Gauges
Probe Details
PosiTector 200 | Probe Model: | B | C | | Range* | 13 - 1000 um
0.5 -40 mils | 5 - 3800 um
2 - 150 mils | Typical Applications: | Polymer coatings on
wood, plastic,
composites, etc. | Thicker coatings
on concrete,
fiberglass, etc. | Accuracy: | (2 microns + 3% of reading)
(0.1 mils + 3% of reading) | *Range limits apply to polymer coatings only. |
Comparison Chart
| Standard | Advanced | | Measures Total Thickness of a coating system | Yes | Yes | | Graphic readout for detailed analysis of the coating system | -- | Yes | | Measures Individual Layer thicknesses in a multi-layer coating system | -- | Yes | | No Calibration required for most applications | Yes | Yes | | One handed menu navigation | Yes | Yes | | Mils/Microns switchable | Yes | Yes | | Adjustable to a known thickness | Yes | Yes | | Thick impact resistant Lexan display | Yes | Yes | | Backlit display for dim or dark environments | Yes | Yes | | Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring | Yes | | | Reading Storage Capacity | 10,000 in up to 1000 groups | Built in clock to date and time stamp each stored measurement | Yes | Yes | | Serial RS232 communication for downloading readings as they are taken to a PC or Data Collector (requires optional Serial Output Cable) | Yes | Yes | | PosiSoft downloading and charting software (includes USB cable) | Optional | Optional | | Built-in IR port for printing to an optional portable printer | Yes | Yes | | Protective rubber holster with belt clip | Yes | Yes | | Nylon carry case with shoulder strap | Yes | Yes | | Certificate of Calibration showing traceability to NIST | Yes | Yes | | Two (2) Year Warranty on both gage body and probe | Yes | Yes |
|
Complete Kit of the PosiTector 200 Coating Thickness Gauges
| | | | All gauges come complete with probe, precision plastic shims, protective rubber holster with belt clip, couplant, 3 AAA batteries, instructions, nylon carrying case with shoulder strap, Certificate of Calibration traceable to NIST, two (2) year warranty. |
 |
Specifications of the PosiTector 2000 Coating Thickness Gauges
Buy Now
|
|
|
|
|
USB/Serial/IR Ports for downloading to a PC, printer or data collector
