Certified Coated Metal Plates |
Certified coated metal plates are ideal for verifying the accuracy and operation of coating thickness gages and are an important component in fulfilling both ISO and in-house quality control requirements.
Many organizations require verification of gage accuracy at the test site each time a coating thickness gage is put into service and at frequent intervals during use. Ideal for this purpose, certified coating thickness standards have measured values traceable to a National Metrology Institution. |
 Features of the CMP Certified Coated Metal Plates
 Standards with steel or aluminum substrates consist of 4 plates mounted in a protective binder | The CMP Certified Coated Metal Plates is ideal for use in the calibration lab, in the field or on the factory floor | Certified and labeled in both Metric and Imperial units |
| The CMP Certified Coated Metal Plates i used to verify the accuracy and operation of any Type 1 (mechanical) and Type 2 (electronic) magnetic, eddy-current or ultrasonic coating thickness gage | Individually serialized for traceability to NIST or PTB - includes a Certificate of Calibration |
|

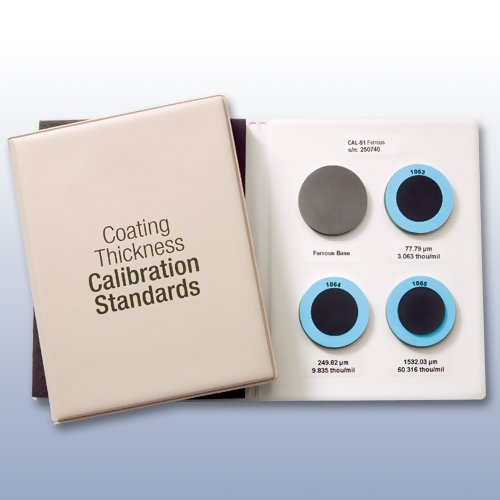

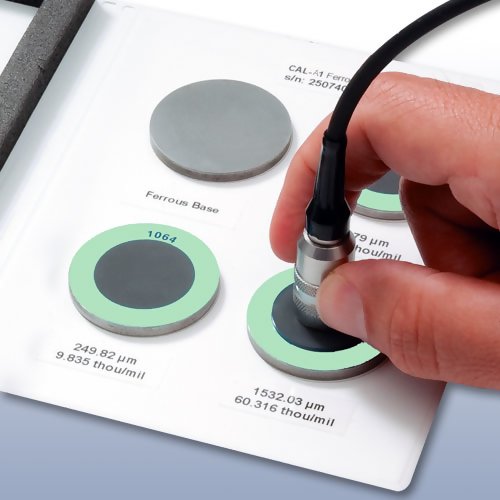

Photo Gallery for the CMP Certified Coated Metal Plates
Click any photo to enlarge
Ordering Guide
Order Code | Ideal for | Coating/
Substrate | S1 | PosiTector 6000
F, FS, FRS, FN, FNS, FNRS
PosiTest F & FM
| Epoxy
on Steel
(Ferrous) | S2 | PosiTector 6000 F0S, F45S, F90S
PosiTest DFT Ferrous & Combo | S3 | PosiTest G & GM
PosiPen A, B & C | A1 | PosiTector 6000
N ,NS, NRS, FN, FNS, FNRS | Epoxy
on Aluminum
(Non-Ferrous) | A2 | PosiTector 6000
NAS , N0S, N45S, N90S
PosiTest DFT Combo | A3 | PosiTector 100B, 200, 200B |
| Order Code | Approximate Thickness | Accuracy | | Plate 1 | Plate 2 | Plate 3 | Plate 4 | S1 | 0 | 75 um
3 mils
| 250 um
10 mils
| 1500 um
60 mils
| 0.43 um
0.017 mil
| S2 | 0 | 75 um
3 mils
| 250 um
10 mils
| 1000 um
40 mils
| S3 | 0 | 15 um
0.6 mils
| 40 um
1.6 mils
| 100 um
4 mils
| A1 | 0 | 75 um
3 mils
| 250 um
10 mils
| 1500 um
60 mils
| 0.43 um
0.017 mil
| A2 | 0 | 75 um
3 mils
| 250 um
10 mils
| 500 um
20 mils
| A3 | 75 um
3 mils
| 125 um
5 mils
| 250 um
10 mils
| 500 um
20 mils
|
|
