6000-N0S3 Positector 6000 Coating Thickness Gauge Complete Kit
Price: $ 1,375.00
Measuring Range: 0-25 mils (0-625 m)
Price$975. up to $1,375.
| Micro Probe Models |  Range Ferrous: 0 - 45 mils (1143 m) Range Non-Ferrous: 0 - 25 mils (625 m) Resolution: 0.05 mil / 0.1 mil (1 m / 2 m) Substrates: F or N The 6000MP Series General Purpose Coating Thickness Gauge is a precise, rugged tester designed to measure coating thickness on ferrous and or non-ferrous metals accurately and quickly using magnetic and eddy current principles The 6000MP is available in Standard (1) or Advanced (3) configuration. The standard model has a monochrome display, 250 reading memory and USB data output. The Advanced model adds a high contrast color LCD display, Scan Mode, Real-Time Graphing Bluetooth output and more.
 Features of the 6000MP Coating Thickness Gages with Micro Probes
 Easy-To-Use - Ready to measureno calibration adjustment required for most applications
- Enhanced one-handed menu navigation
- Flashing displayideal in a noisy environment
- RESET feature instantly restores factory settings
Durable- Solvent, acid, oil, water and dust resistant - weatherproof
- Wear-resistant probe tip
- Shock-absorbing, protective rubber holster with belt clip
- Two year warranty on gage body AND probe
Accurate- Certificate of Calibration showing traceability to NIST included (Long Form)
- Built-in temperature compensation ensures measurement accuracy
- Hi-RES mode increases displayed resolution for use on applications that require greater precision
- Conforms to national and international standards including ISO and ASTM
Versatile- Fully interchangeable probes are compatible with ALL gage bodies
- Multiple Calibration adjustment options including 1 point, 2 point, known thickness, average zero
- Selectable display languages
- Hi Contrast backlit display for bright or dark environments
- Flip display enables right-side-up viewing
- Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
- Uses alkaline or rechargeable batteries (built-in charger)
Powerful- Statistics mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring
- HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
- FAST mode - faster measurement speed for quick inspection
- USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
- USB mass storage - stored readings and graphs can be accessed using universal PC/ Mac web browsers or file explorers. No software required
- Every stored measurement is date and time stamped
- Software updates via web keep your gage current
- Connects to PosiTector.net
|

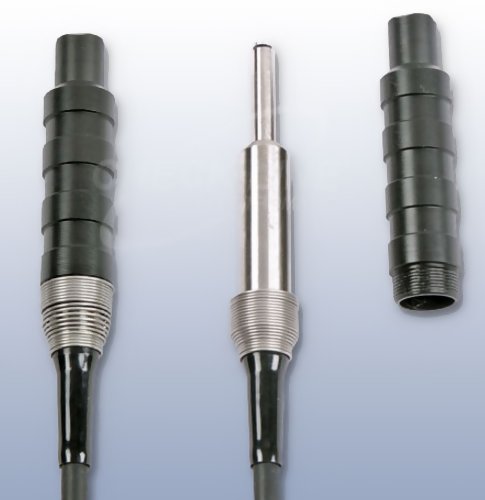

Photo Gallery for the 6000MP Coating Thickness Gages with Micro Probes - click any photo to enlarge

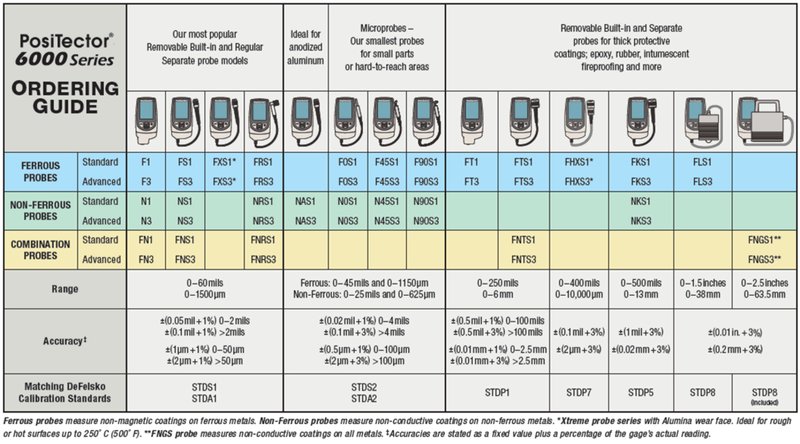

Feature Comparison Chart
Feature Comparison Chart | Basic
(1) | Memory (3) | | Hi Contrast LCD Display | Monochrome | Color | | FAST mode - faster measurement speed for quick inspection | | | | SCAN Mode - take continuous readings without lifting the probe | - | | | Hi-Lo limits audibly and visibly alerts whenmeasurements exceed your specified limits | | | | Instantly calculate average, standarddeviation, min/max thickness and number of readings while measuring | | | | Reading Storage Capacity | 250 in one group | 10,000 in up to 1000 groups | | SSPC PA2 feature set determines if filmthickness over a large area conforms to user-specified min/max levels | - | | | PSPC 90/10 feature determines if a coatingsystem complies with an IMO performance standard for protective coatings | - | | | Onscreen help, real time graphing, picture prompting and batch notes | - | | | Multiple stored calibration adjustments formeasuring on a variety of substrate conditions | - | | | Wireless Technology for data transfer to a PC or optional portable printer | - | |
|

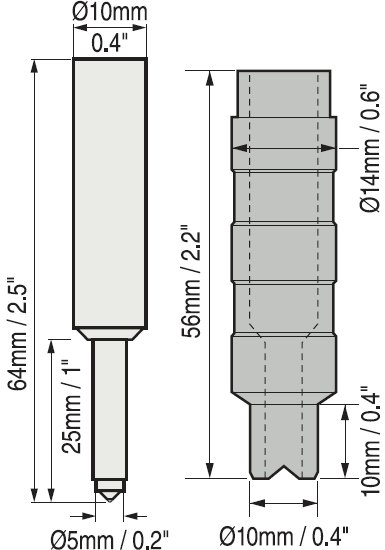

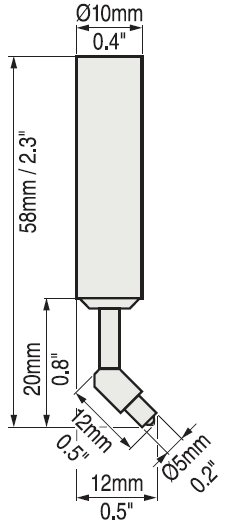

Probe Specifications of the 6000MP Coating Thickness Gages with Micro Probes
|   | Probe Models: | F0S | N0S | Range: | 0- 45 mils | 0- 25 mils | | 0- 1143 m | 0- 625 m | Accuracy*: | + (0.02mils + 1%)0- 4 mils
+ (0.1mils + 3%)> 4mils | + (.5m + 1%)0- 100 m
+ (2m + 3%)> 100m | | *Accuraciesare stated as a fixed value plus a percentage of thegage's actual reading. |
| | Probe Models: | F45S | N45S | Range: | 0- 45 mils | 0- 25 mils | | 0- 1143 m | 0- 625 m | Accuracy*: | + (0.02mils + 1%)0- 4 mils
+ (0.1mils + 3%)> 4mils | + (.5m + 1%)0- 100 m
+ (2m + 3%)> 100m | | *Accuraciesare stated as a fixed value plus a percentage of thegage's actual reading. |
| | Probe Models: | F90S | N90S | Range: | 0- 45 mils | 0- 25 mils | | 0- 1143 m | 0- 625 m | Accuracy*: | + (0.02mils + 1%)0- 4 mils
+ (0.1mils + 3%)> 4mils | + (.5m + 1%)0- 100 m
+ (2m + 3%)> 100m | | *Accuraciesare stated as a fixed value plus a percentage of thegage's actual reading. |
|
Specifications of the 6000MP Coating Thickness Gages with Micro Probes
| Measuring principle: | magnetic induction principle (Ferrous)
eddy-current principle (Non-Ferrous) | | Display | Backlit & Reversible LCD | | Data Output | IR & USB - "2" & "3" Models
Bluetooth - "3" Models | | Surface Temp. | Maximum 120 F / 49 C | | Power | 3 AAA batteries, Included | | Dimensions | 5.75" x 2.5" x 1.2" (146 x 64 x 31 mm) | | Weight | 5.8 oz. (165 g) without batteries | | Protection Class | Meets or exceeds IP5X, Solvent, acid, oil, water & dust resistant | | Warranty | 2 Years | | Calibration Certificate | Certificate of Calibration showing traceability to NIST included |
Complete Kit of the 6000MP Coating Thickness Gages with Micro Probes
| | | ALL Gauges are supplied as a complete kit including precision plastic shims, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, two (2) year warranty. |
 |
Related Products for the 6000MP Coating Thickness Gages with Micro Probes
6000GP Series
General Purpose Models |  |
| | _ |
6000IP Series
Intergral Probe Models |  |
 Integral probe for one hand use on paint and coating applications in the range of 0-60 mils (0-1500 m)
| | _ |
6000TC Series
Thick Coating Model |  |
For thick paint and coatings from 60 to 250 mils | | _ |
6000TCX Series
Extra Thick Coating Models |  |
For extra thick paint and coatings from 150-500 mils | | _ |
3000-PTS
Coating Thickness Gauge Test Stand | |
Spring loaded lever for fast & precise travel It's Compact size and light weight make it an Ideal test stand for all workplaces | | _ |
PRINTERBT
Bluetooth Printer |  |
Battery-operated Receives data via Bluetooth wireless technology Prints readings and statistical summary | | _ |
PosiTectorNET
|  |
A free web-based application offering secure centralized management of thickness readings |
Download for the 6000MP Coating Thickness Gages with Micro Probes
