DeFelsko KITFNS1 PosiTector Inspection Kit Standard



Price: $ 1,835.00

DeFelsko PosiTector Inspection Kits
Available with your choice of Standard or Advanced Gage features

All DeFelsko PosiTector Inspection Kits contain 1 PosiTector gage body (Standard or Advanced) and 3 probes coating thickness (Ferrous Only or Combination Ferrous Non-Ferrous), environmental dew point and surface profile, as well as accessories in a convenient hard shell carrying case.

The PosiTector Inspection Kits is available with your choice of Standard or Advanced Gage. Each PosiTector body accepts the PosiTector 6000, DPM, and SPG probes included in the kit easily converting from a coating thickness gauge to a dew point meter or surface profile gauge. Select from 12 pre-configured kits or build your own, contact us for details.


line
Kit Contents
line

Each pre-configured inspection kit contains:

  • PosiTector Gage Body
  • DeFelsko PosiTector 6000 Coating Thickness Probe
  • DeFelsko PRBDPM-C PosiTector DPM Environmental Dew Point Meter Probe PRBDPM
  • DeFelsko PRBSPG-B PosiTector SPG Surface Profile Probe PRBSPG
  • Precision plastic shims, glass zero plate and metal shim
  • Protective rubber holster with belt clip, wrist strap
  • Protective lens shield, 3 AAA alkaline batteries
  • PosiSoft Software and USB cable
  • 3 Long Form Certificates of Calibration traceable to NIST
  • Convenient hard shell case and 3 instruction manuals
  • Two (2) year warranty on gauge body and probes


line
Standard Model Inspection Kits
line

Each Standard Kit contains the PosiTector Standard gage body and 3 probes coating thickness, environmental and surface profile.

Coating Thickness with Standard models

  • Storage of 250 readings per probe - stored readings can be viewed or downloaded

Environmental Monitoring with Standard models

  • Storage of 2,500 datasets (RH, Ta, Ts, Td, Ts-Td). Stored readings can be viewed or downloaded.
  • Auto Log Mode runs unattended on batteries for up to 50 hours or continuously via USB

Surface Profile with Standard models

  • Storage of 250 readings per probe - stored readings can be viewed or downloaded

Standard Kits Ordering Guide:

Surface Profile ProbeEnvironmental ProbeCoating Thickness ProbeInspection Kit (Order Code)
PRBSPGPRBDPM6000-F
0 - 1500 um (0 - 60 mils)
Ferrous only, integral

KITF1

PRBSPGPRBDPM6000-FS
0 - 1500 um (0 - 60 mils)
Ferrous only, with cable

KITFS1

PRBSPGPRBDPM6000-FT High Range
0 - 6000 um (0 - 250 mils)
Ferrous only, integral

KITFT1

PRBSPGPRBDPM6000-FTS High Range
0 - 6000 um (0 - 250 mils)
Ferrous only, with cable

KITFTS1

PRBSPGPRBDPM6000-FN
0 - 1500 um (0 - 60 mils)
Ferrous/non-ferrous, integral

KITFN1

PRBSPGPRBDPM6000-FNS
0 - 1500 um (0 - 60 mils)
Ferrous/non-ferrous, with cable

KITFNS1


line
Advanced Model Inspection Kits
line

Each Advanced Kit contains the PosiTector Advanced gage body and 3 probes coating thickness, environmental and surface profile.

Features Include

  • Onscreen Batch Annotation - add notes, change batch names and more with built-in QWERTY keyboard
  • Live graphing of measurement data
  • WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
  • 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.

Coating Thickness with Advanced models

  • Storage of 100,000 readings in up to 1,000 batches and sub-batches.
  • 3 Scan Modes-increase measurement speed to 180+ readings per minute
  • Normal take continuous readings without lifting the probe
  • NEW Statistics take continuous readings and record average, standard deviation, min/max thickness and number of readings while scanning
  • NEW Limited Count Average take continuous readings up to a user specified count. Gage displays and records the average of the readings.
  • Multiple stored calibration adjustments for measuring on a variety of substrate conditions
  • SSPC-PA 2 feature determines if film thickness over a large area conforms to user specified min/max levels

Environmental Monitoring with Advanced models

  • Storage of 100,000 datasets in up to 1,000 batches.
  • NEW Enhanced Auto Log mode turns the gage off between readings for up to 8 months of battery life. Each reading can be uploaded to PosiSoft.net or an FTP server using WiFi. Automatically group readings into batches at daily, weekly, or monthly intervals
  • User defined limits for all parameters - visible and audible warnings
  • NEW Send email alerts when connected to WiFi
  • Wet bulb temperature can be displayed and recorded
  • Trend Charts graph readings in real-time

Surface Profile with Advanced models

  • Storage of 100,000 readings in up to 1,000 batches and sub-batches.
  • SmartBatchTM allows entry of user-defined parameters and criteria to comply with various standards and test methods

Advanced Kits Ordering Guide:

Surface Profile ProbeEnvironmental ProbeCoating Thickness ProbeInspection Kit (Order Code)
PRBSPGPRBDPM6000-F
0 - 1500 um (0 - 60 mils)
Ferrous only, integral

KITF3

PRBSPGPRBDPM6000-FS
0 - 1500 um (0 - 60 mils)
Ferrous only, with cable

KITFS3

PRBSPGPRBDPM6000-FT High Range
0 - 6000 um (0 - 250 mils)
Ferrous only, integral

KITFT3

PRBSPGPRBDPM6000-FTS High Range
0 - 6000 um (0 - 250 mils)
Ferrous only, with cable

KITFTS3

PRBSPGPRBDPM6000-FN
0 - 1500 um (0 - 60 mils)
Ferrous/non-ferrous, integral

KITFN3

PRBSPGPRBDPM6000-FNS
0 - 1500 um (0 - 60 mils)
Ferrous/non-ferrous, with cable

KITFNS3


line
Video
line


line
PosiSoft Suite of Software
line

Four FREE and unique ways to view and report your PosiTector and PosiTest data. Learn More


line
FAQ's - Frequently Asked Questions
line

Click to View DeFelsko PosiTector Inspection Kit Frequently Asked Questions


line
Related Products
line

DeFelsko PosiTector 6000
Coating Thickness Gauge

  • For general purpose paint and coating applications.
related

line

DeFelsko Positector DPM

  • Environment Meter / Dew Point Meter
related

line

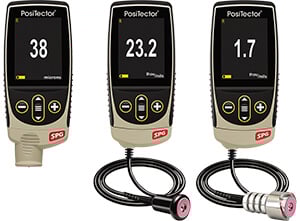

DeFelsko Positector SPG
  • Surface Profile Gauge
related


line
Downloads
line

DeFelsko PosiTector Inspection Kits - Data Sheet

line
Buy Now
line


Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
DeFelsko KITFNS1 PosiTector Inspection Kit Standard $1,835.00
