DeFelsko KITPIP3 PosiTector Advanced Pipeline Inspection Kit with Advanced Gauge Body, Probes PRBFTS, PRBDPM, PRBSHDD; Testex Digital Micrometer, DeFelsko VIS1 SSPC Standards, DeFelsko Certified 8-Sided WFT Gage
$3,230.00
Loading...
Loading product info...
Similar Products to Consider
Product Description
The DeFelsko KITPIP3 PosiTector Advanced Pipeline Inspection Kit is essential tools for comprehensive pipeline coating inspection including dry and wet film thickness, surface profile, environmental conditions, and Shore hardness.
Dry and Wet Film Thickness, Environmental, Shore Hardness, and Surface Profile Evaluation.
Kit Contents
- DeFelsko PosiTector 6000 FTS3 Advanced Coating Thickness Gage
- DeFelsko DPM Probe PRBDPM Integral Probe
- DeFelsko SHD Probe PRBSHDD
- Testex Digital Micrometer

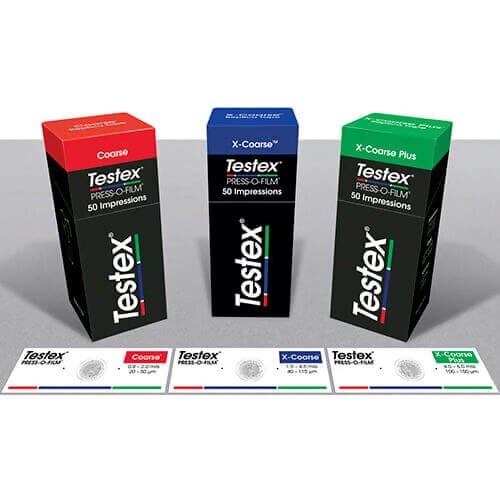

- 1 Testex Coarse Tape, 1 Testex X-Coarse Tape, 1 Testex X-Coarse Plus Tape
- DeFelsko VIS1 SSPC VIS 1 Standards
- DeFelsko WFG60/1500SSC Certified Stainless 8-Sided Wet Film Thickness Gage
- Protective Carrying Case and Instructions
Features

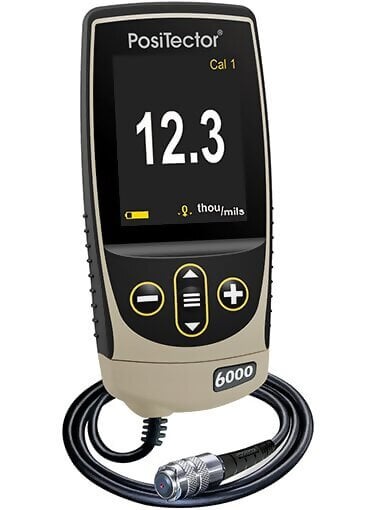

DeFelsko PosiTector 6000 FTS3 Advanced:
- NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
- NEW On-gage help explains menu items at the touch of a button
- NEW Weatherproof, dustproof, and water-resistant - IP65-rated enclosure
- NEW Ergonomic design with durable rubberized grip
- NEW Auto rotating display with Flip Lock
- NEW Screen Capture - save 100 screen images for record keeping and review
- NEW Up to 30% longer battery life
- Storage of 250,000 readings in up to 1,000 batches and sub-batches
- NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more
- WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
- Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software
- Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
- Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
- NEW Instant-on feature quickly powers up the gage if recently powered down

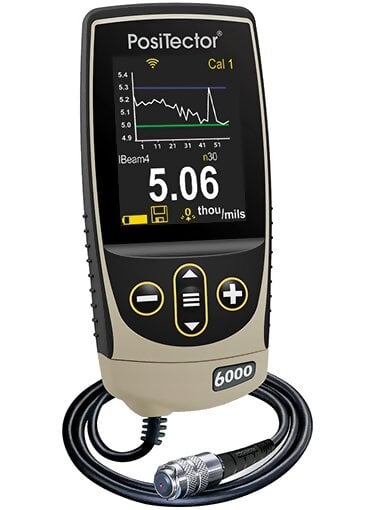

- Live graphing of measurement data
- NEW Prompted Batch Mode - create pre-defined batches with on-screen text and image prompts for each reading
- 3 Scan Modes - increase measurement speed to 180+ readings per minute:
- Normal take continuous readings without lifting the probe
- Statistics take continuous readings and record average, standard deviation, min/max thickness and number of readings while scanning
- Limited Count Average take continuous readings up to a user-specified count. The gage displays and records the average of the readings
- Multiple stored calibration adjustments for measuring on a variety of substrate conditions
- NEW SSPC-PA 2, ISO 19840, and IMO PSPC 90/10 modes help users comply with standards by prompting for min/max specifications, displaying the necessary readings, and automatically calculating statistics with a pass/fail result

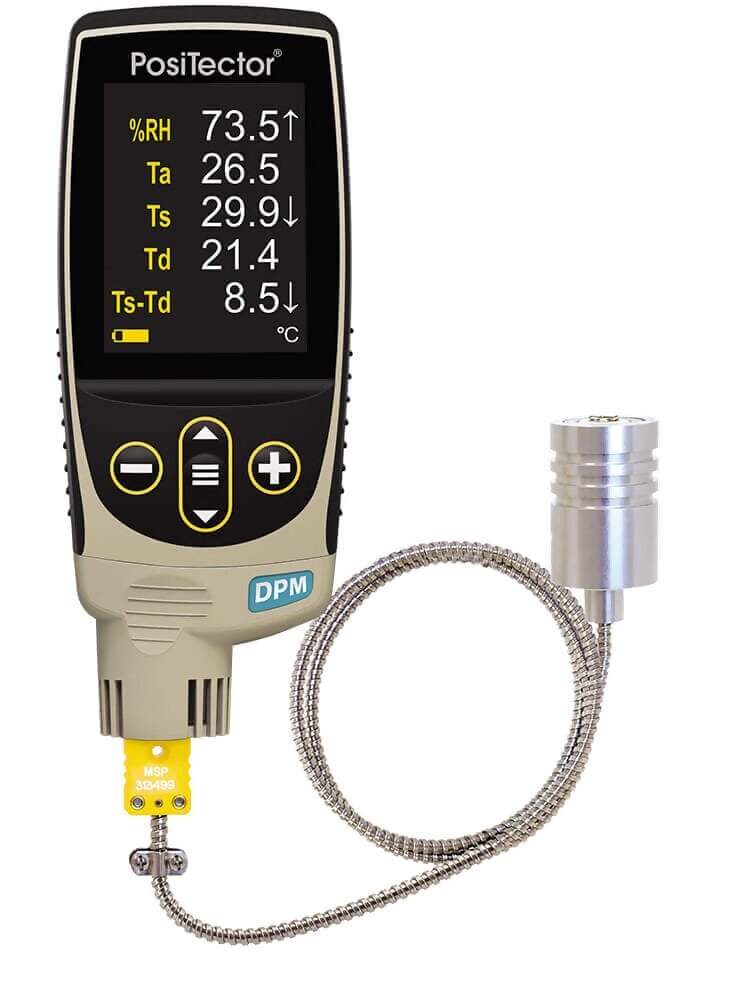

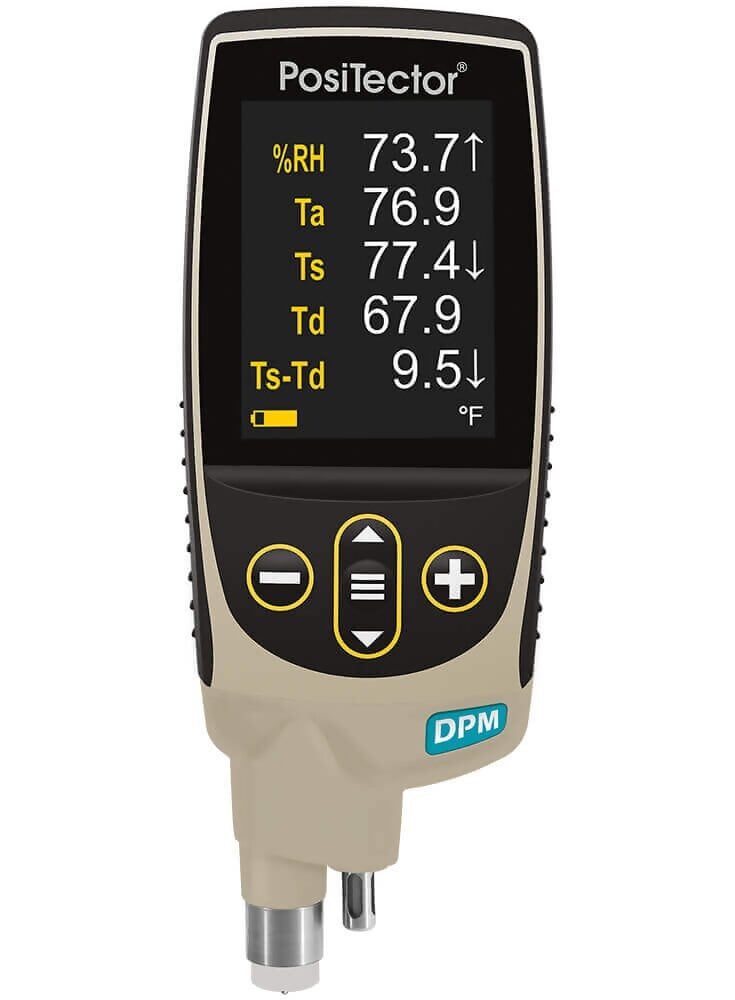

DeFelsko PosiTector DPM Only:
- NEW Instant-on feature quickly powers up the gage if recently powered down
- Enhanced Auto Log mode turns the gage off between readings for up to 8 months of battery life. Each reading can be uploaded to PosiSoft.net or an FTP server using WiFi. Automatically group readings into batches at daily, weekly, or monthly intervals
- User defined limits for all parameters - visible and audible warnings. Receive email alerts when connected to WiFi
- Trend Charts graph readings in real-time
- Wet bulb temperature can be displayed and recorded

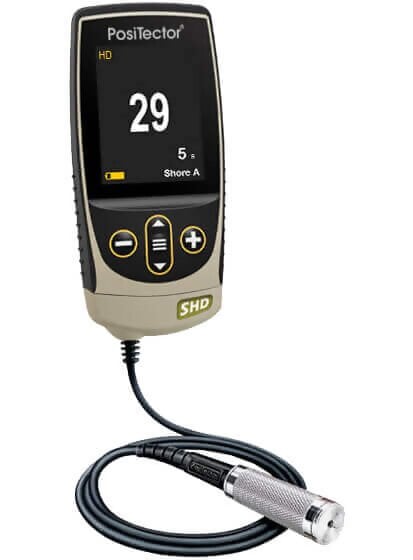

DeFelsko PosiTector SHD Only:
- NEW Instant-on feature quickly powers up the gage if recently powered down
- Auto Sub-Batch - automatically create sub-batches after the required number of readings are taken
- Live graphing of measurement data
- Store thickness, profile, environmental, wall thickness, and hardness measurements in individual batches

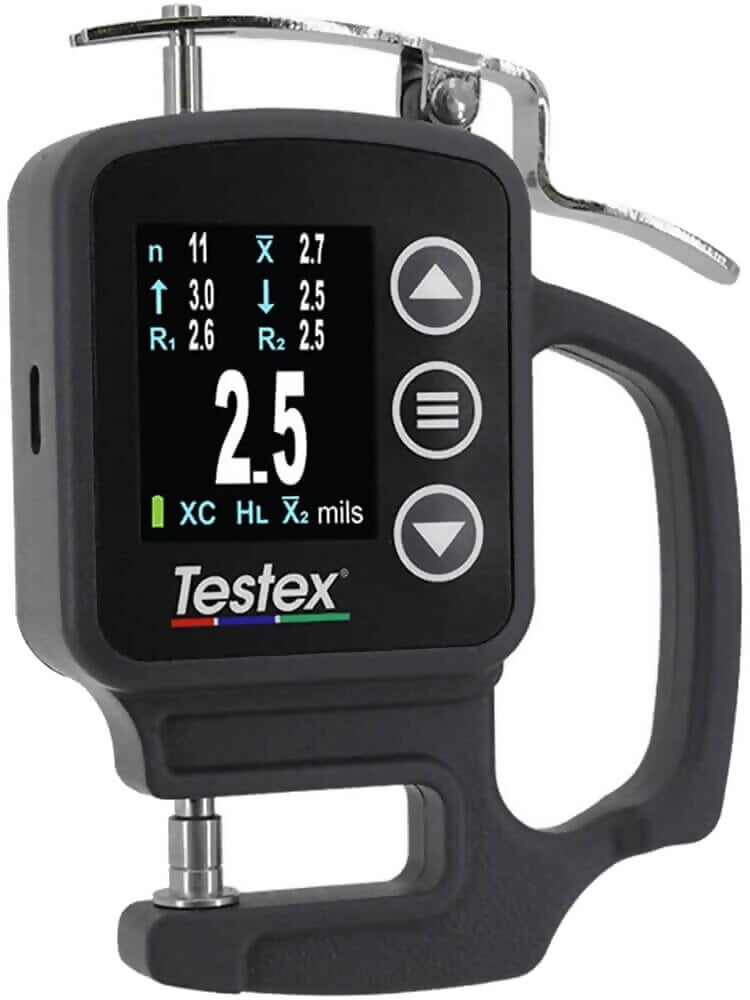

Testex Digital Micrometer
- Bright, high-contrast digital color display with large numerals for easy viewing in bright or dark environments
- Measures in both Microns and Mils
- Built-in memory for up to 250 readings with on-screen statistics. View and download measurements on any computer using the included USB cable. No software required
- Durable, all-metal housing
- Simply select the appropriate replica tape grade to automatically apply the appropriate conversion factor and subtract the 50 m (2 mils) backing thickness
- In 'Average mode', the Micrometer prompts the user and averages two readings, in compliance with international standards
- A traceable Certificate of Calibration is included with each digital micrometer
- Fully compatible with powerful PosiSoft Software for archiving and reporting measurement data
- USB Drive mode retrieves data in a manner similar to a flash drive in .csv format. No software to install or internet connection required
SSPC VIS 1 Standard
- Ideal for Surfaces Prepared by Dry Abrasive Blast Cleaning

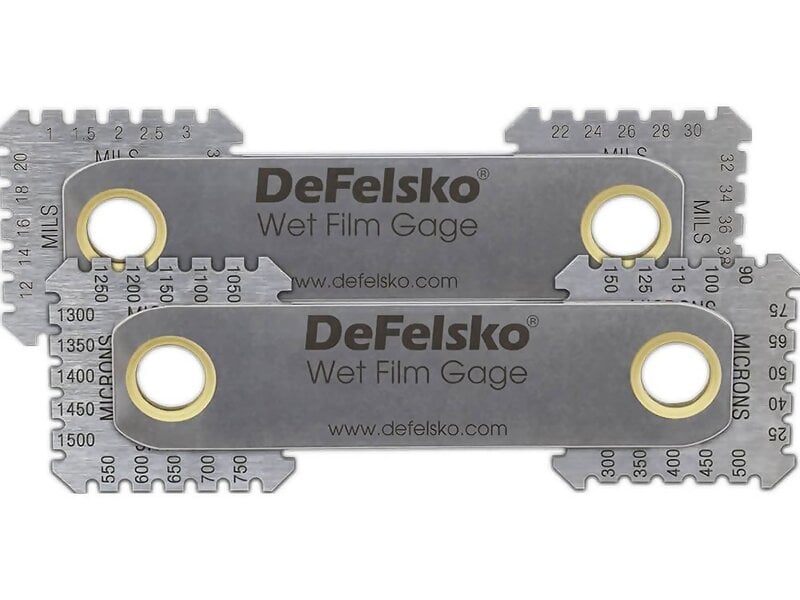

DeFelsko Certified 8-Sided WFT Gage
- Durable stainless steel constructionIncludes Certificate of Accuracy
- 40 notches for superior resolution - 5 notches per side
- Two-sided - Microns and Mils
- Includes compact hard-shell storage case and pictorial instruction card
Specifications
| PosiTector 6000 | Advanced |
| Measuring principle | magnetic induction principle (Ferrous) |
| Data Output | USB - "1" & "3" Models, Bluetooth - "3" Models |
| Surface Temp. | Maximum 120 F / 49 C |
| Protection Class | Meets or exceeds IP5X, Solvent, acid, oil, water & dust resistant |
| Calibration Certificate | Certificate of Calibration showing traceability to NIST included |
| Min. Concave Radius | 1 inch (2" OD) |
| Probe PRBFTS | 0 - 6 mm / 0 - 250 mils |
| PosiTector SHD | Advanced |
| SHD Application | Medium to extra hard materials such as hard rubber, epoxies, hard plastics, PVC, acrylic, etc |
| Probe PRBSHDD | 0 - 100 Shore D |
| Accuracy | 1 |
| Resolution | 0.1 |
| DeFelsko Certified 8-Sided WFT Gage | WFG60/1500SSC |
| Range | 1 - 60 mils | 25 - 1,500 m |
