DeFelsko PRBFNGS-D PosiTector 6000 Cabled Very Thick Coatings Probe FNGS Only, Measures Coatings on Ferrous & Non-Ferrous Metals, 0-2.5"
$1,580.00
Loading...
Loading product info...
Similar Products to Consider
Product Description

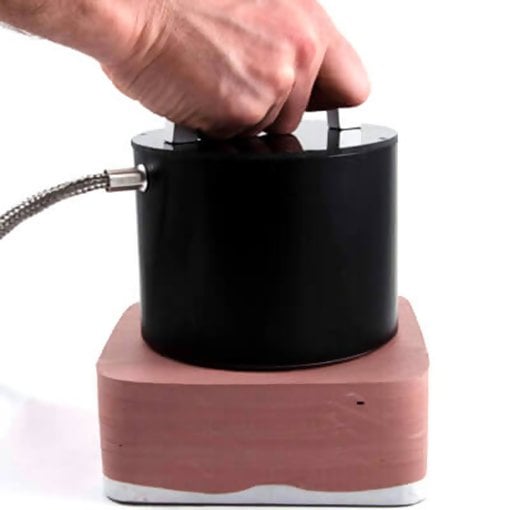

DeFelsko PosiTector 6000 FNGS Cabled Spare Probe For Use With 6000 Series
Display Sold Separately
Display Sold Separately
ThePosiTector 6000consists of a body and a probe. A wide selection of interchangeable probes are available. All bodies accept all probes.
Measures very thick coatings on ALL metals. Ideal for measuring ship hull coatings and thick intumescent paints.
Features
- Measures up to 63.5 mm (2.5 inches)
- Measures non-conductive coatings on both ferrous and non-ferrous metal substrates
- Braided stainless steel cable - kink-proof, wear and cut resistant
- Long-lasting, low wear probe face to facilitate scanning of large surfaces
- Includes a handle for easy one-handed operation
- Includes a set of traceable coating thickness standards
- Includes instruction card
Specifications
| PRBFNGS | |
|---|---|
| Range: | 0 - 2.5 inches 0 - 63.5 mm |
| *Accuracy: | (0.01 in. + 3%) (0.2 mm + 3%) |
| Minimum Surface Area: | 10 x 10 in. (254 x 254 mm) |
| Minimum Substrate Thickness: | 0.2 in. (5 mm) |
| Weight: | 0.8 lb. (0.4 kg) |
Click image to enlarge
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
