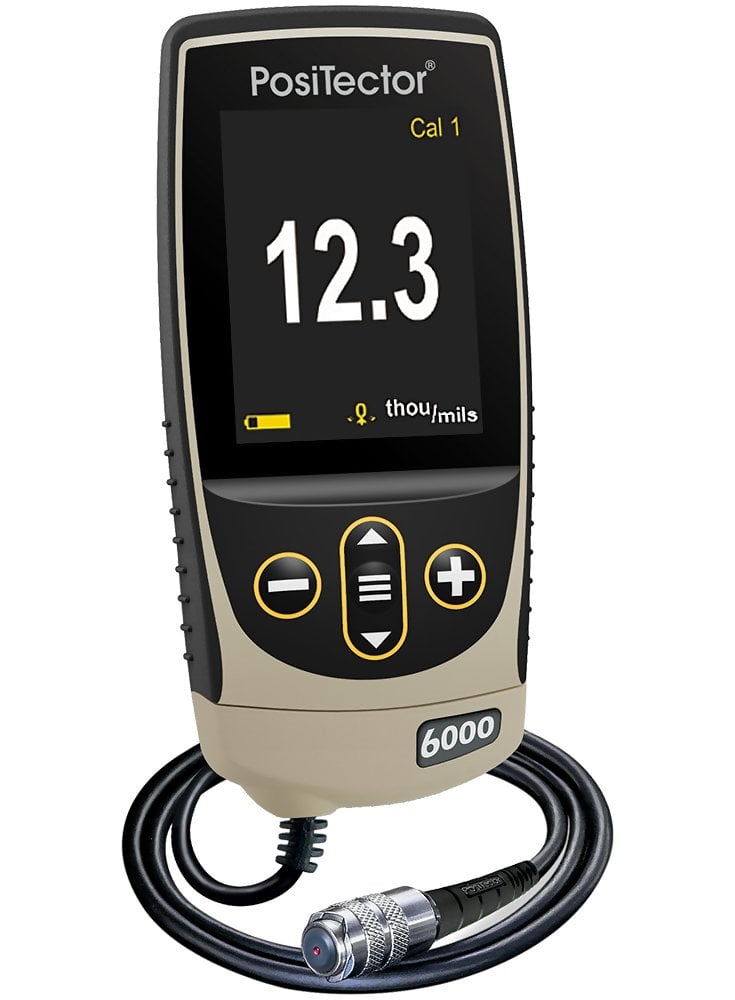

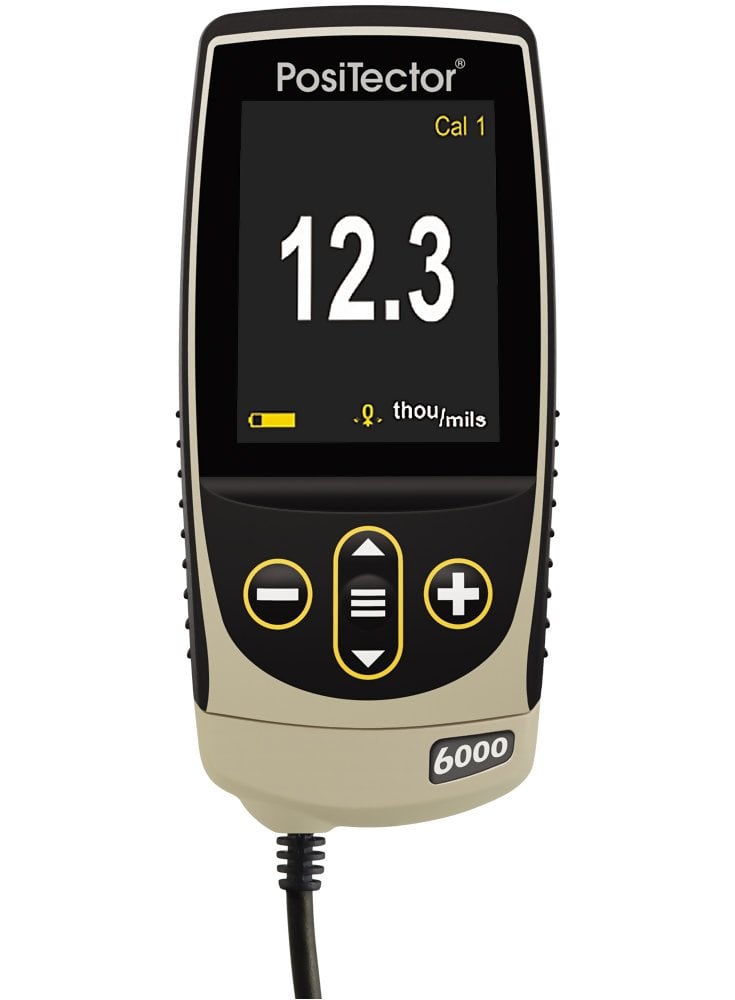

DeFelsko FNS1-G PosiTector 6000 FNS1 Coating Thickness Gauge with Standard Body, Cabled Probe, Measures Coatings on All Metals, 0-60 mils

DeFelsko FNS1 PosiTector 6000 FNS1 Coating Thickness Gage Standard Body with Cabled Ferrous and Non-Ferrous Probe for general purpose paint and coating applications.

---

Model: FNS1 with Standard Body

---

Storage: 1,000 readings per probe - stored readings can be viewed or downloaded

---

Substrate: All Metals

---

Range: 0 - 60 mils (0 - 1500 m)

---

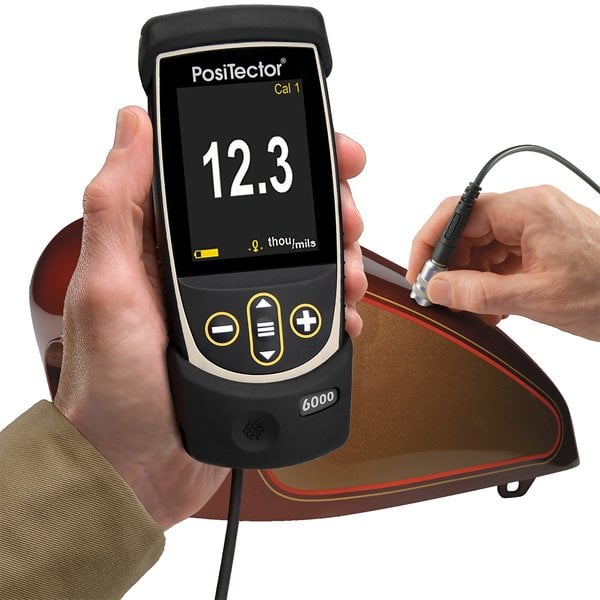

The DeFelsko FNS1 PosiTector 6000 FNS1 Coating Thickness Gage is a precise, rugged tester designed to measure coating thickness on ferrous and non-ferrous metals accurately and quickly using magnetic induction and eddy current principles.

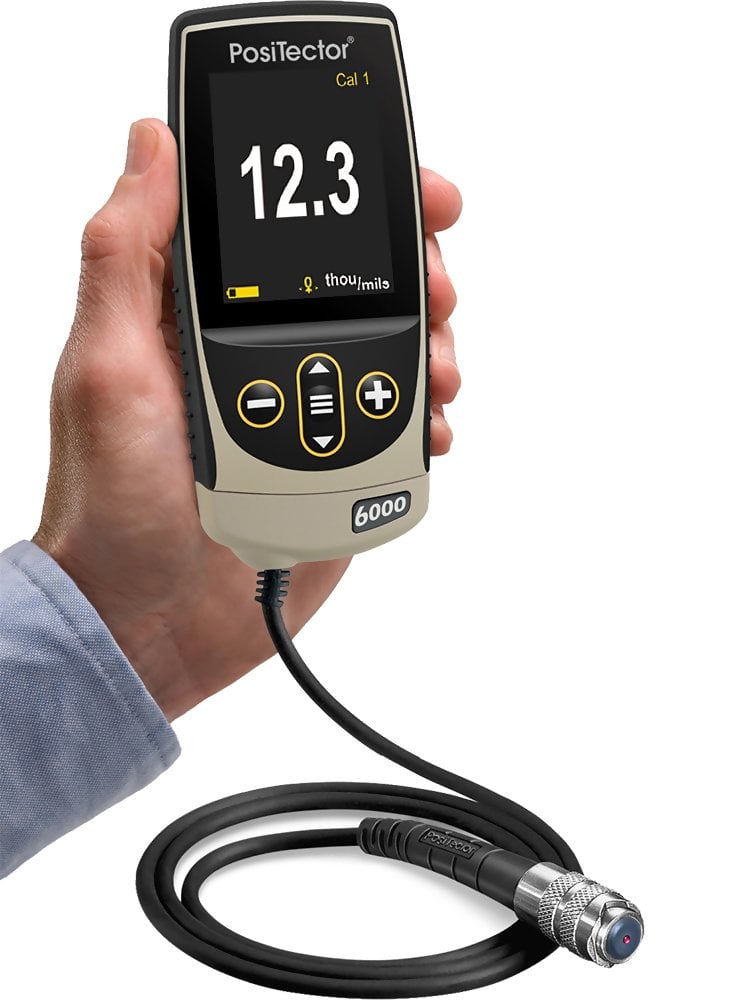

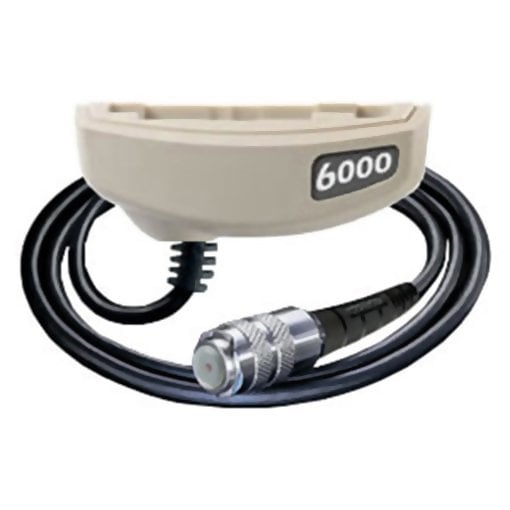

The DeFelsko PosiTector 6000 FNS1 features a constant-pressure, stainless steel cabled probe hermetically sealed to be totally waterproof - ideal for underwater use.

The DeFelsko PosiTector 6000 FNS1 has a large 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation, 1,000 in one group memory reading storage capacity and USB data output.

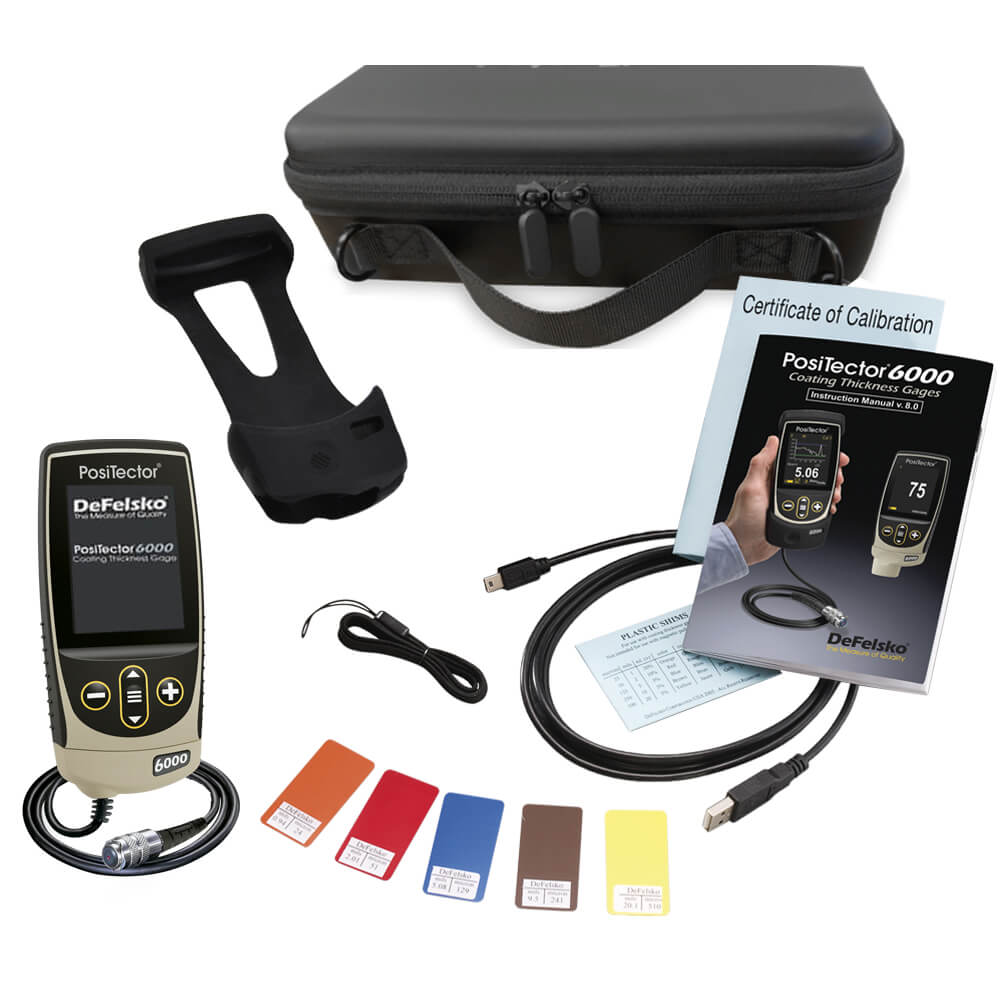

Kit Contents

---

The DeFelsko PosiTector 6000 FNS1 Standard Coating Thickness Gage Kit includes everything needed for testing:

Features

---

Simple

• Fast measurement speed - 60+ readings per minute. Enhanced FAST mode - 90+ readings per minute for quick inspection.
• Ready to measure - no adjustment required for most applications
• NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
• NEW On-gage help explains menu items at the touch of a button
• Flashing display - ideal in a noisy environment
• RESET feature instantly restores factory settings

Durable

• NEW Weatherproof, dustproof, and water-resistant - IP65-rated enclosure
• NEW Ergonomic design with durable rubberized grip
• Wear-resistant probe tip
• Shock-absorbing, protective rubber holster for added impact resistance
• Two year warranty on gage body AND probe

Accurate

• Certificate of Calibration showing traceability to NIST or PTB included
• Built-in temperature compensation ensures measurement accuracy
• Hi-RES mode increases displayed resolution for precision applications
• Conforms to national and international standards including ISO and ASTM

Versatile

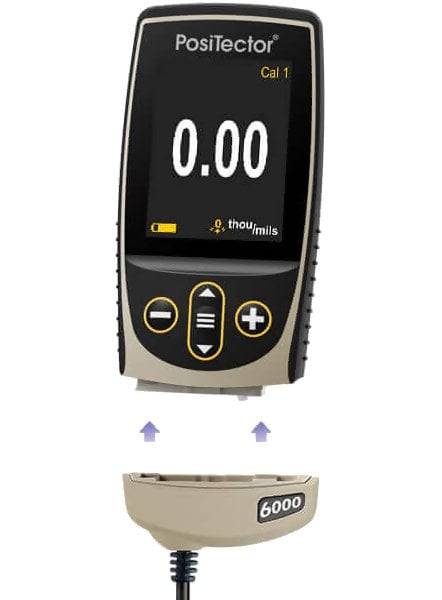

• PosiTector body accepts all PosiTector 6000, 200, DPM, IRT, RTR, SPG, SST, SHD, BHI, and UTG probes easily converting from a coating thickness gage to a dew point meter, surface profile gage, soluble salt tester, ultrasonic wall thickness gage, or hardness tester
• Multiple Calibration adjustment options including 1 point, 2 point, and ISO 19840 correction factors

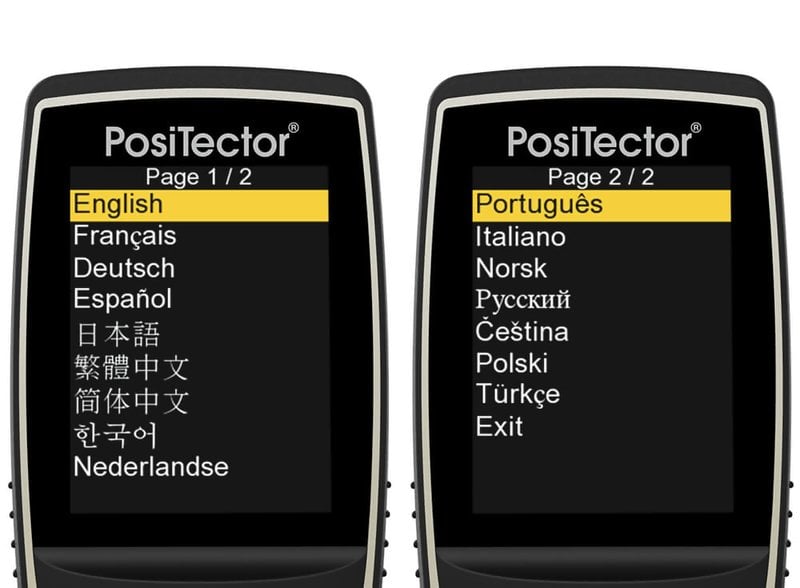

• Selectable display languages
• NEW Auto rotating display with Flip Lock
• Extended cables available (up to 75 m/250 ft) for underwater or remote measuring

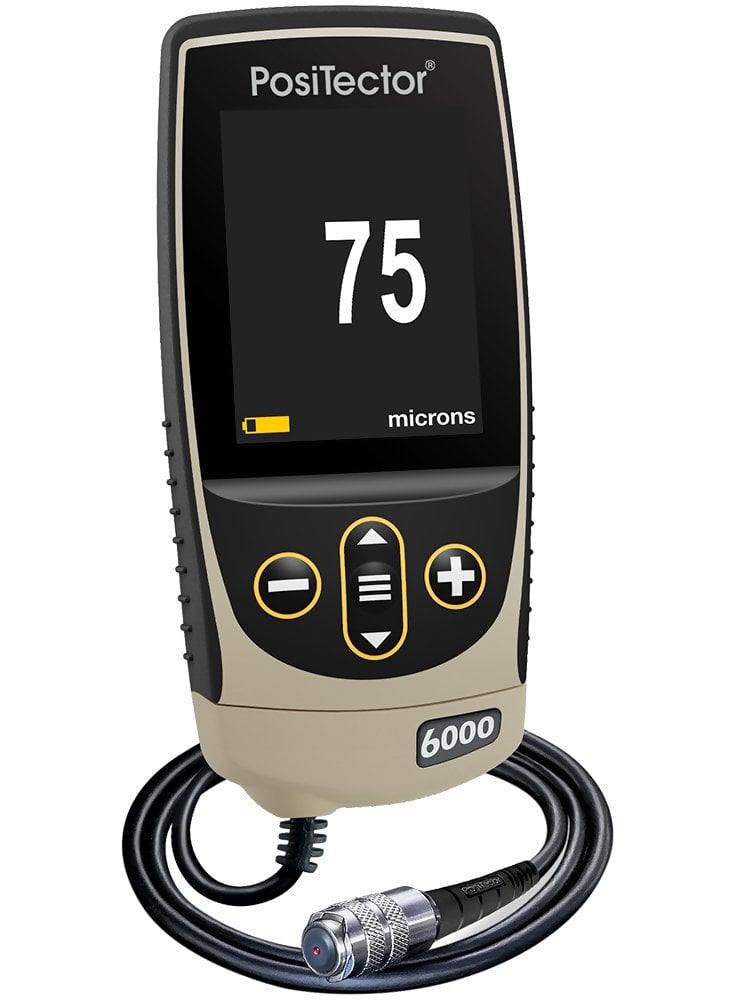

• Mils/Microns/mm switchable

Powerful

• Statistics mode continually displays/updates average, standard deviation, min/max and number of readings while measuring
• NEW Screen Capture - save 100 screen images for record keeping and review
• HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
• NEW Instant-on feature quickly powers up the gage if recently powered down
• NEW Up to 30% longer battery life

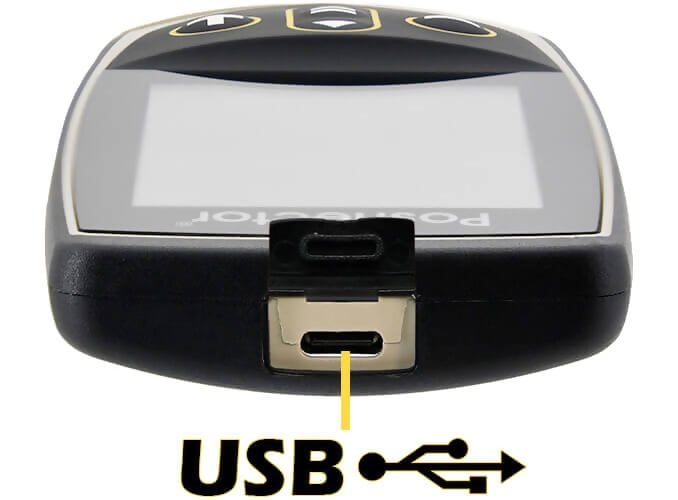

• USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
• Every stored measurement is date and time stamped
• Software Updates via web keep your gage current
• Software Solutions for viewing, analyzing & reporting data

Standard Model Features

---

• Includes ALL features as shown above plus:
• Storage of 1,000 readings per probe - stored readings can be viewed or downloaded

Specifications

---

Measuring principle	magnetic induction principle (Ferrous) eddy-current principle (Non-Ferrous)
Display	High contrast, reversible color LCD
Data Output	USB - "1" & "3" Models Bluetooth - "3" Models
Power	3 AAA batteries, Included
Dimensions	5.75" x 2.5" x 1.2" (146 x 64 x 31 mm)
Weight	5.8 oz. (165 g) without batteries
Protection Class	Meets or exceeds IP5X, Solvent, acid, oil, water & dust resistant
Warranty	2 Years
Calibration Certificate	Certificate of Calibration showing traceability to NIST included

Probe Specifications

---
