DeFelsko F90ES1-G PosiTector 6000 F90ES1 Standard Ferrous Coating Thickness Gage
Similar Products to Consider
Model: F90ES1 with Standard (1) Body
Range: 0 - 45 mils (0 - 1150 m)
The DeFelsko F90ES1 Positector 6000 F90ES1 Standard Coating Thickness Gauge is a precise, rugged tester designed to measure coating thickness on Ferrous Metals accurately and quickly using magnetic induction principles.

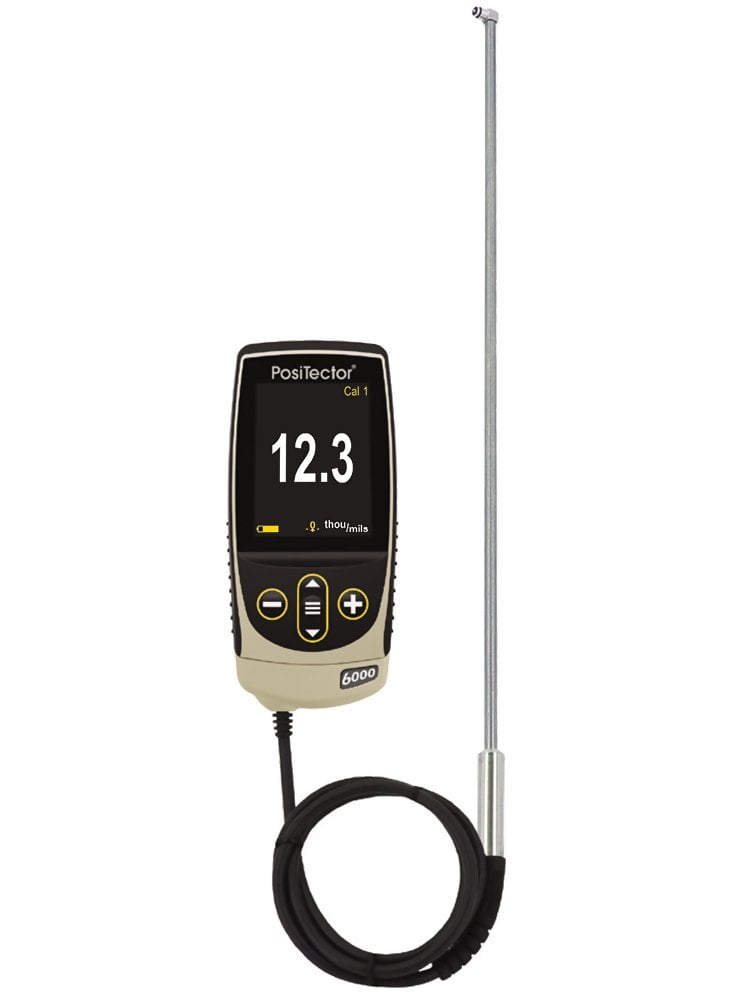

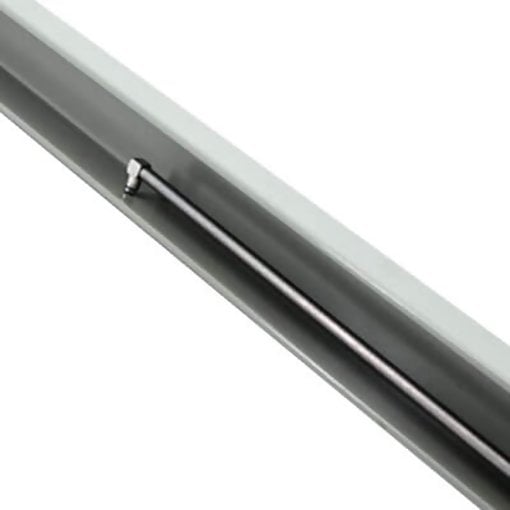

The F90ES1 features an extended 90 degree cabled microprobe for measuring non-magnetic coatings on steel substrates. With a small measuring tip, longest probe length and best thin film accuracy, this instrument is ideal for measuring on small parts, hard-to-reach areas, or close to edges.
The DeFelsko F90ES1 Positector 6000 F90ES1 Standard Ferrous Coating Thickness Gauges has a large 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation, 1,000 in one group memory reading storage capacity and USB data output.

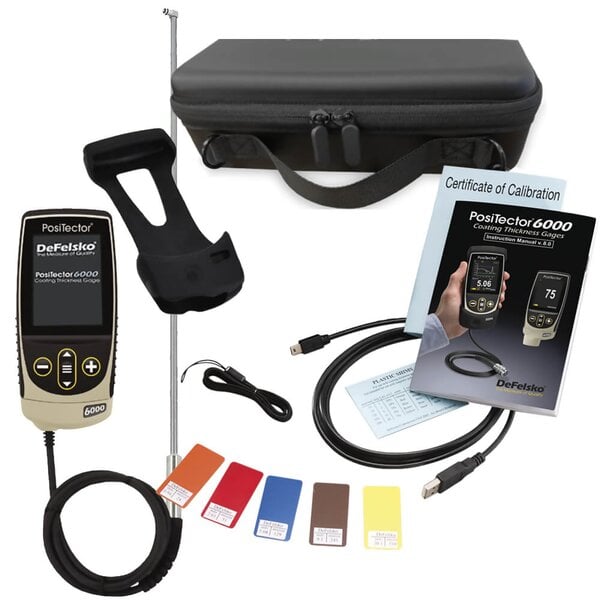

Kit Contents
The DeFelsko PosiTector 6000 F90ES1 Standard Coating Thickness Gage Kit includes everything needed for testing:
- PosiTector Standard Gage Body BDYSTD
- PosiTector 6000 Probe PRBF90ES
- Precision Plastic Shim(s)
- Protective Rubber Holster
- Wrist Strap and Protective Lens Shield
- 3 AAA Alkaline Batteries
- PosiSoft Software and USB Cable
- Long Form Certificate of Calibration Traceable to NIST or PTB
- Protective Carrying Case and Instructions
- Two (2) Year Warranty
Features
Simple
- Fast measurement speed - 60+ readings per minute. Enhanced FAST mode - 90+ readings per minute for quick inspection.
- Ready to measure - no adjustment required for most applications
- NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
- NEW On-gage help explains menu items at the touch of a button
- Flashing display - ideal in a noisy environment
- RESET feature instantly restores factory settings
Durable
- NEW Weatherproof, dustproof, and water-resistant - IP65-rated enclosure
- NEW Ergonomic design with durable rubberized grip
- Wear-resistant probe tip
- Shock-absorbing, protective rubber holster for added impact resistance
- Two year warranty on gage body AND probe
Accurate
- Certificate of Calibration showing traceability to NIST or PTB included
- Built-in temperature compensation ensures measurement accuracy
- Hi-RES mode increases displayed resolution for precision applications
- Conforms to national and international standards including ISO and ASTM
Versatile

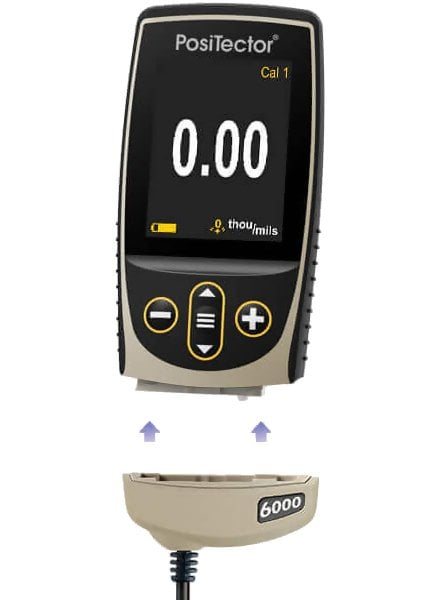

- PosiTector body accepts all PosiTector 6000, 200, DPM, IRT, RTR, SPG, SST, SHD, BHI, and UTG probes easily converting from a coating thickness gage to a dew point meter, surface profile gage, soluble salt tester, ultrasonic wall thickness gage, or hardness tester
- Multiple Calibration adjustment options including 1 point, 2 point, and ISO 19840 correction factors

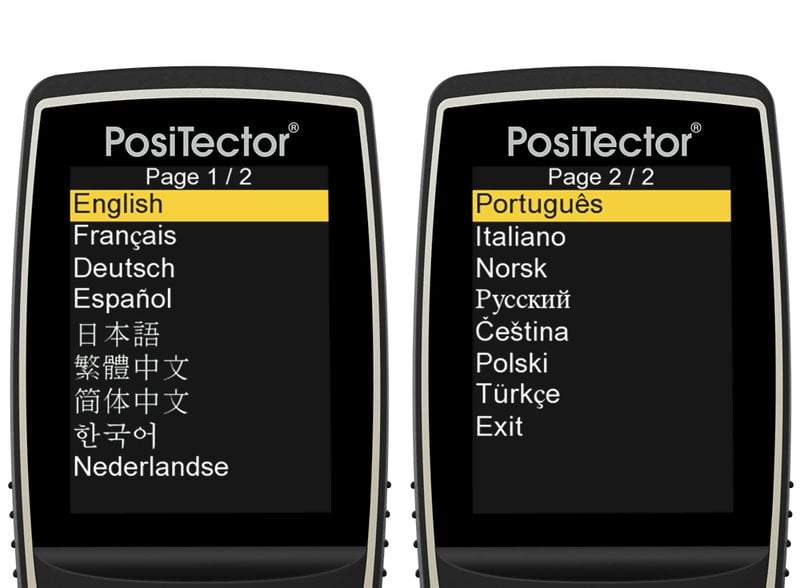

- Selectable display languages
- NEW Auto rotating display with Flip Lock
- Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
- Mils/Microns/mm switchable
Powerful
- Statistics mode continually displays/updates average, standard deviation, min/max and number of readings while measuring
- NEW Screen Capture - save 100 screen images for record keeping and review
- HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
- NEW Instant-on feature quickly powers up the gage if recently powered down
- NEW Up to 30% longer battery life

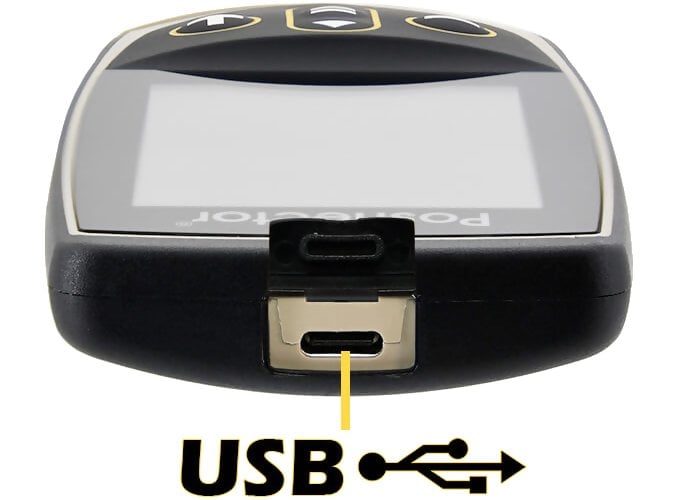

- USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
- Every stored measurement is date and time stamped
- Software Updates via web keep your gage current
- Software Solutions for viewing, analyzing & reporting data
Standard Model Features
- Includes ALL features as shown above plus:
- Storage of 1,000 readings per probe - stored readings can be viewed or downloaded
Specifications
| Measuring principle | magnetic induction principle (Ferrous) eddy-current principle (Non-Ferrous) |
| Display | High contrast, reversible color LCD |
| Data Output | USB - "1" & "3" Models Bluetooth - "3" Models |
| Power | 3 AAA batteries, Included |
| Dimensions | 5.75" x 2.5" x 1.2" (146 x 64 x 31 mm) |
| Weight | 5.8 oz. (165 g) without batteries |
| Protection Class | Meets or exceeds IP5X, Solvent, acid, oil, water & dust resistant |
| Warranty | 2 Years |
| Calibration Certificate | Certificate of Calibration showing traceability to NIST included |
Probe Specifications

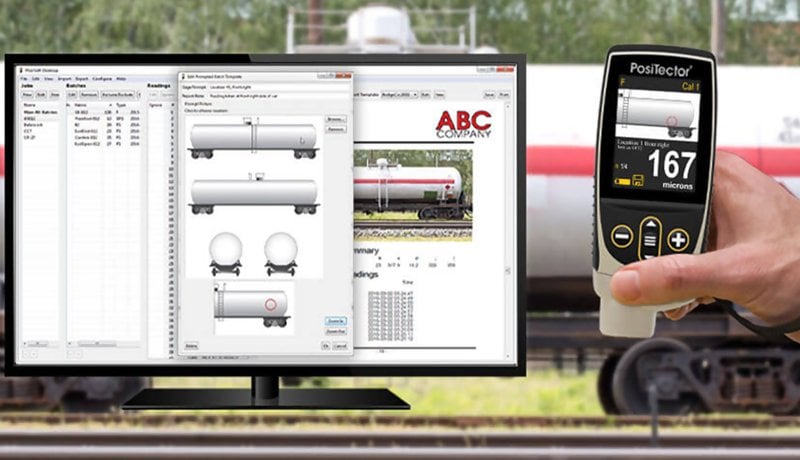

PosiSoft Suite of Software
Four FREE and unique ways to view and report your PosiTector and PosiTest data. Learn More
- PosiSoft Desktop
- PosiSoft.net
- PosiTector App
- PosiSoft USB
