DeFelsko 200B1 Positector 200 B1 Standard Ultrasonic Coating Thickness Gages for Non-Metal Substrates, 0.5 - 40 mils
$2,175.00
Loading...
Loading product info...
Similar Products to Consider
Product Description
DeFelsko 200B1 Positector 200 B1 Standard Ultrasonic Coating Thickness Gage for Non-Metal Substrates.
Measuring Range: 0.5 - 40 mils (13 - 1000 m)
Typical Applications: Polymer coating on wood, plastic, etc.
Separate Probe
Includes ALL features as shown above plus:
Measuring Range: 0.5 - 40 mils (13 - 1000 m)
Typical Applications: Polymer coating on wood, plastic, etc.
Separate Probe
The DeFelsko PosiTector 200B1non-destructively measures a wide variety of applications using proven ultrasound technology. The PosiTector 200B1model measures polymer coating on wood, plastic, etc.
Conforms to ASTM D6132 and ISO 2808

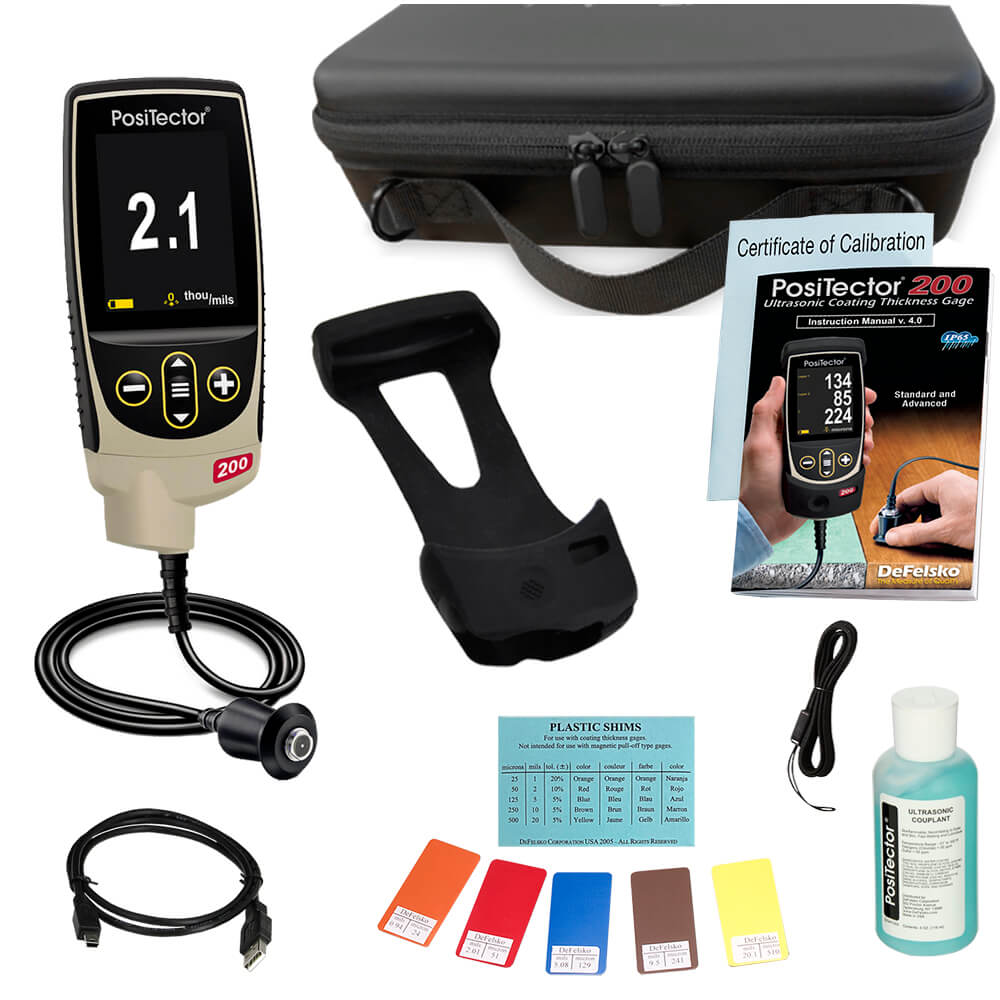

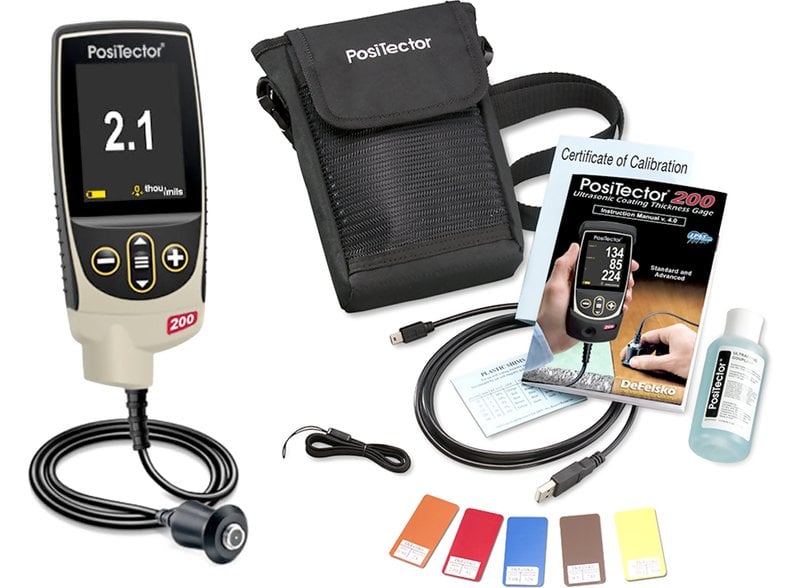

Kit Contents
The DeFelsko PosiTector 200 B1 Standard Ultrasonic Coating Thickness Gage Kit includes everything needed for testing:
- PosiTector Standard Gage Body BDYSTD
- PosiTector 200 B Probe PRB200B
- Couplant (Ultrasonic Gel) and Precision Plastic Shim(s)
- Protective Rubber Holster
- Wrist Strap and Protective Lens Shield
- 3 AAA Alkaline Batteries
- PosiSoft Software and USB Cable
- Long Form Certificate of Calibration Traceable to NIST or PTB
- Protective Carrying Case and Instructions
- Two (2) Year Warranty
Features
Simple
- Ready to measureno adjustment required for most applications
- NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
- NEW On-gage help explains menu items at the touch of a button
- RESET feature instantly restores factory settings
Durable
- NEW Weatherproof, dustproof, and water resistantIP65-rated enclosure
- NEW Ergonomic design with durable rubberized grip
- Shock-absorbing, protective rubber holster for added impact resistance
- Two year warranty on gage body AND probe
Accurate
- Responsive transducers provide fast, accurate readings
- Certificate of Calibration showing traceability to NIST or PTB included
- Proven non-destructive ultrasonic technique conforms to ASTM D6132 and ISO 2808
Versatile
- PosiTector body accepts all PosiTector 200, 6000, DPM, IRT, RTR, SPG, SST, SHD, BHI, and UTG probes easily converting from a coating thickness gage to a dew point meter, surface profile gage, soluble salt tester, hardness tester, or ultrasonic wall thickness gage
- NEW Auto rotating display with Flip Lock
- Mils/Microns switchable
- Selectable display languages
Powerful
- Statistics mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring
- Max Thick Mode displays the deepest ultrasonic echo eliminating the need to adjust the Lo Rangeideal for ignoring unwanted surface echos
- NEW Screen Capture save 100 screen images for record keeping and review
- NEW up to 30% longer battery life
- USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
- PosiSoft USB Drivestored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
- Includes PosiSoft suite of software for viewing and reporting data
- Software Updates via web keep your gage current
Standard Models Features
Includes ALL features as shown above plus:
- NEW Storage of 1,000 readings per probe-stored readings can be viewed or downloaded
PosiSoft Suite of Software
Four FREE and unique ways to view and report your PosiTector and PosiTest data. Learn More
- PosiSoft Desktop
- PosiSoft.net
- PosiTector App
- PosiSoft USB
Related Products
- For use with the: PosiTector 6000, PosiTector 200, PosiTector SPG, PosiTector RTR H, PosiTector RTR 3D, PosiTector DPM, PosiTector IRT, PosiTector SST, PosiTector UTG, PosiTector SHD, PosiTector BHI
Downloads
 | DeFelsko 200 Positector Coating Thickness Gages for Non-Metal Substrates - Full Instruction Manual |
| DeFelsko 200 Positector Coating Thickness Gages for Non-Metal Substrates - Literature |
| DeFelsko 200 Positector Coating Thickness Gages for Non-Metal Substrates - B Order Guide |
 | DeFelsko PosiTector Coating Thickness Gages - Online Instructions Manual |
 | Accessories for DeFelsko Inspection Instruments - Online Catalog |
